Product Description​​

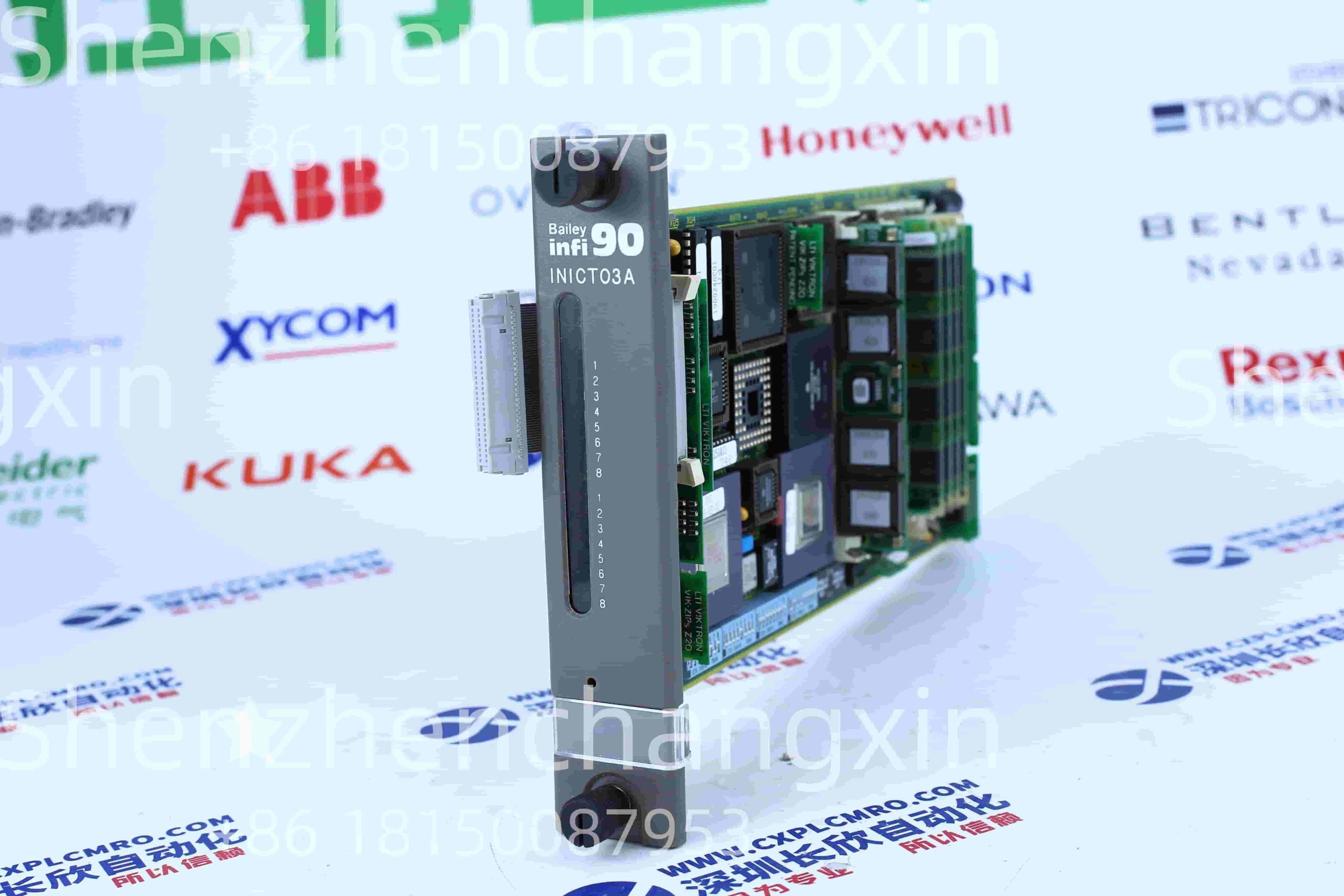

The​​Emerson Bailey INICT03A​​is a 16-channel analog input module designed for the INFI 90 distributed control system(DCS).This robust module serves as a critical interface for connecting field transmitters and sensors to the control system,providing high-precision signal conditioning and conversion for process variables like temperature,pressure,and flow.Engineered for reliability in demanding industrial environments,it ensures accurate data acquisition for critical control loops.

Channels:16 isolated inputs

Input Signals:4-20 mA,0-10V DC,etc.

Resolution:16-bit

Conversion Rate:10 ms per channel

​​Technical Specifications​​

Parameter

Specification

​​Product Model​​

INICT03A

​​Manufacturer​​

Emerson(formerly Bailey Controls)

​​Product Type​​

Analog Input Module

​​Compatible System​​

INFI 90 DCS

​​Number of Channels​​

16

​​Input Signal Types​​

4-20 mA,0-10V DC,0-1 mA,±10V DC

​​Isolation​​

Channel-to-Channel and Channel-to-System

​​Resolution​​

16-bit

​​Conversion Rate​​

10 ms per channel(total scan:160 ms)

​​Accuracy​​

±0.1%of full scale

​​Power Supply​​

+5V DC(from node bus)

​​Operating Temperature​​

0°C to 60°C(32°F to 140°F)

​​Relative Humidity​​

5%to 95%non-condensing

​​Mounting​​

Installs in INFI 90 DIN Rail Mounting Unit

​​Application Scenarios​​

In a large coal-fired power plant,multiple​​Bailey INICT03A​​modules were deployed within the INFI 90 DCS to monitor critical boiler temperatures and pressures via hundreds of field transmitters.The modules’high channel density and individual channel isolation prevented ground loops and signal interference,ensuring highly accurate measurements that contributed to a 2%improvement in combustion efficiency and a significant reduction in emissions.The​​INICT03A​​’s reliability addressed the key pain point of maintaining signal integrity in an electrically noisy environment.

​​Technical Principles and Innovative Values​​

Innovation Point 1:High-Density Channel Isolation:The​​INICT03A​​provides individual isolation for each of its 16 input channels.This design prevents noise and ground loops from one field device affecting others,a significant advantage over modules with group isolation,ensuring data accuracy in complex industrial settings.

Innovation Point 2:Versatile Signal Conditioning:A key innovation is its ability to accept a wide range of analog signal types(4-20mA,voltage,etc.)without requiring external signal conditioners.This flexibility simplifies spare parts management and reduces system configuration time.

Innovation Point 3:Seamless INFI 90 Integration:The module is optimized for the INFI 90 system architecture,communicating efficiently over the node bus.This tight integration provides reliable,deterministic data transfer to the main controllers,which is crucial for real-time process control.

​​Application Cases and Industry Value​​

Case Study 1:A chemical processing plant used the​​Bailey INICT03A​​to monitor reactor temperatures and feed flow rates.The high accuracy(±0.1%)and stability of the modules enabled tighter control of the reaction process,increasing product yield by 5%and reducing off-spec material.The plant reported a direct annual savings of over$300,000,with the​​INICT03A​​modules operating flawlessly for over a decade.

Case Study 2:In a water treatment facility’s upgrade,existing​​INICT03A​​modules were seamlessly integrated with a new control platform.Their robust design and standard signal output minimized integration costs and downtime,demonstrating the long-term value and adaptability of the product.

​​Related Product Combination Solutions​​

​​Bailey INIMM01​​:The corresponding Mounting Module that provides power and communication interface for the​​INICT03A​​in the INFI 90 rack.

​​Bailey INICT02A​​:A similar 8-channel analog input module,suitable for applications requiring fewer points.

​​Bailey INNIS11​​:A Loop Interface Module that can work alongside the​​INICT03A​​for advanced control strategies.

​​Bailey INICT05​​:A thermocouple/RTD input module for direct temperature measurement,complementing the​​INICT03A​​’s current/voltage capability.

​​Bailey INIOC01​​:A digital output module,part of the same I/O family for comprehensive control system configuration.

​​Installation,Maintenance,and Full-Cycle Support​​

Installation:The​​Bailey INICT03A​​module slides securely into a dedicated Mounting Module(e.g.,INIMM01)on the INFI 90 system DIN rail.Installation requires de-energizing the mounting unit.Field wiring connects to the terminal blocks on the mounting module,with clear labeling for each channel.It is crucial to follow the INFI 90 system guidelines for segregation of signal types to maximize noise immunity.

Maintenance:Maintenance is minimal due to the module’s solid-state design.Routine checks should include verifying the integrity of input signals against the DCS display and ensuring that the module’s status indicators are normal.Having a pre-configured spare module on hand allows for quick replacement during planned outages,minimizing downtime.

Support:We provide comprehensive technical support for the​​INICT03A​​,including configuration assistance and troubleshooting.We maintain a stock of genuine modules to ensure rapid delivery and support for your critical INFI 90 system infrastructure.
