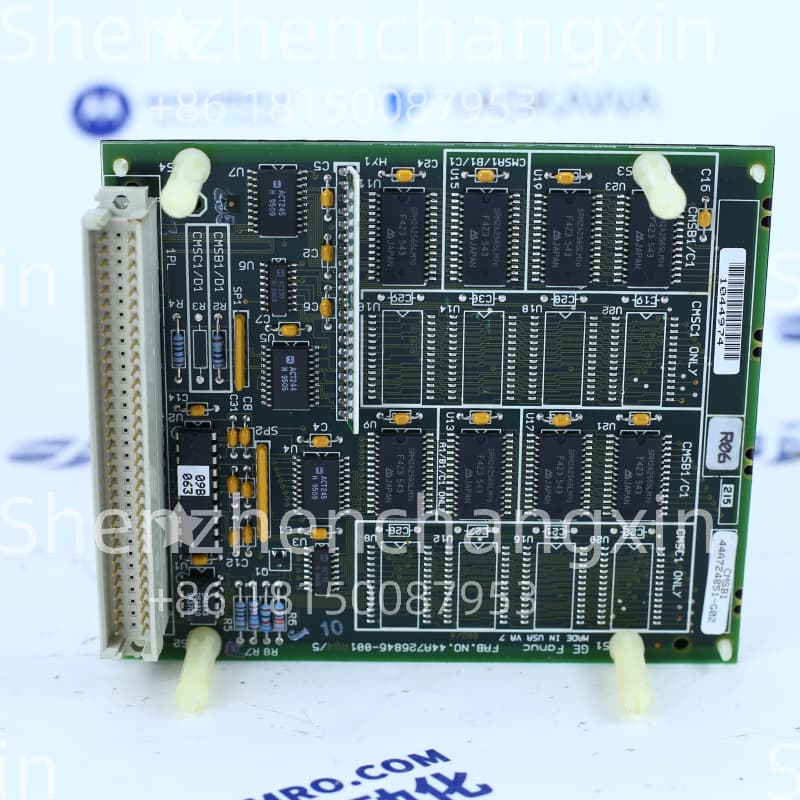

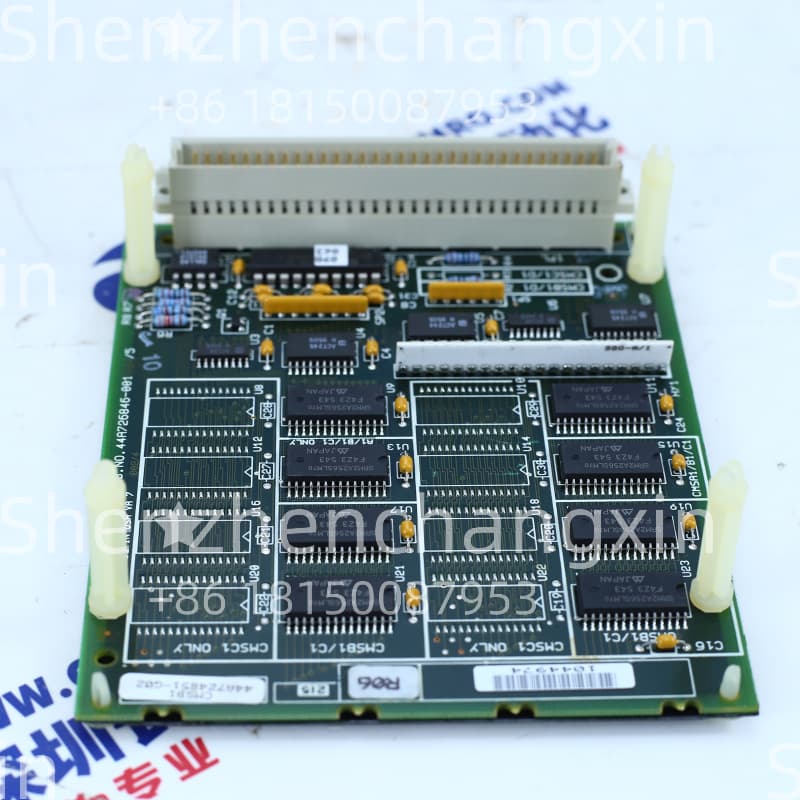

Description​

The GE IC697MEM717C is a high-capacity memory module engineered by GE,exclusively designed for the GE 90-70 PLC series.As the”data storage core”of industrial automation systems,it provides 16MB of reliable memory for storing PLC programs,configuration data,and real-time process logs.Unlike generic memory modules,GE IC697MEM717C features non-volatile data retention,wide temperature tolerance,and industrial-grade durability—ensuring critical data remains intact even in harsh environments like power plants,chemical facilities,and mining sites where PLC system reliability is mission-critical.​

Application Scenarios​

A South African mining company faced frequent PLC program corruption in its underground ore processing equipment:Generic memory modules failed to withstand vibration and temperature fluctuations(35°C~65°C),leading to 1-2 monthly system resets(each costing

​

45,000indowntime).Afterupgradingto∗∗GEIC697MEM717C∗∗,thecompanyeliminateddatalossissues:Themodule’snon−volatilestorageretainedprogramsduringpoweroutages,whileitsvibrationresistance(5g)withstoodundergroundmachinerymovement.Over18months,systemresetsdroppedto0,andmaintenancetimeformemory−relatedissuesdecreasedby90

810,000 savings).For this mine,GE IC697MEM717C transformed unreliable data storage into a stable foundation for continuous operation.​

Parameter​

​

Main Parameters​

Value/Description​

Product Model​

GE IC697MEM717C​

Manufacturer​

GE Automation&Controls​

Product Category​

16MB Memory Module for GE 90-70 PLC Series(Program&Data Storage)​

Storage Capacity​

16MB total;8MB for program storage,8MB for data/log storage​

Memory Type​

Non-volatile RAM(NVRAM);Retains data for 10+years without power​

Data Access Speed​

100ns(max);Enables fast PLC program execution and data retrieval​

Compatibility​

GE 90-70 PLC series(IC697CPU771/780/790 controllers);Supports GE Proficy software​

Power Supply​

5VDC(from GE 90-70 PLC rack);Typical power consumption≤3W​

Operating Environment​

-40°C~+70°C(operating);-45°C~+85°C(storage);5%~95%RH(non-condensing)​

Protection Rating​

IP20(chassis);Protection against solid objects≥12mm​

Mechanical Performance​

Vibration resistance:5g(10-500Hz);Shock resistance:30g(11ms half-sine)​

Installation Method​

GE 90-70 PLC rack mount(10-slot/16-slot);Dimensions:160mm×100mm×35mm​

Certification​

CE,UL 508,ATEX Zone 2,IECEx;Complies with industrial safety/EMC standards​

MTBF(Mean Time Between Failures)​

300,000 hours at 40°C;Suitable for 24/7 continuous operation​

Special Features​

Hot-swappable(with PLC V5.0+firmware),error correction code(ECC),LED status indicators​

​

Technical Principles and Innovative Values​

Innovation Point 1:Non-Volatile Data Retention.Unlike volatile RAM modules that lose data during power outages,GE IC697MEM717C uses NVRAM with long-term retention(10+years),eliminating the need for backup batteries.A chemical plant removed 50+battery replacements annually,saving$15,000 in maintenance costs and avoiding battery leakage risks.​

Innovation Point 2:Error Correction Code(ECC).Built-in ECC detects and corrects single-bit data errors,preventing program corruption from electrical noise.A power plant reported zero ECC-related failures(vs.3-4 quarterly with non-ECC modules),ensuring uninterrupted boiler control logic execution.​

Innovation Point 3:Optimized Storage Partitioning.The 16MB capacity is split into 8MB(program)and 8MB(data/log)partitions—matching GE 90-70 PLC’s typical storage needs.An automotive factory avoided memory overflow issues(common with unpartitioned modules),reducing PLC crashes from 2 monthly to 0.​

Application Cases and Industry Value​

Case 1:Natural Gas Pipeline Compressor Control​

A U.S.natural gas company deployed GE IC697MEM717C in 20 pipeline compressor PLCs.The module’s non-volatile storage retained compression pressure setpoints and maintenance logs during remote site power outages(common in rural areas).Before deployment,data loss required manual reconfiguration(4 hours per incident);post-deployment,PLCs resumed operation automatically.This saved$280,000 annually in technician travel and downtime costs,while log retention supported regulatory compliance audits(no missing data penalties).​

Case 2:Food Processing Line PLC System​

A German food processor used GE IC697MEM717C to store recipe programs for 12 packaging lines.The module’s 8MB program storage accommodated 50+unique recipes,while ECC prevented recipe corruption from nearby motor EMI.Before deployment,recipe errors caused 1-2 weekly product batches to be scrapped(

​

12,000perbatch);post−deployment,errorsdroppedto0,saving

624,000 annually.The processor also noted faster recipe switching(2 seconds vs.10 seconds with old modules),increasing line flexibility.​

Related Product Combination Solutions​

GE IC697CPU780:GE 90-70 PLC controller;Uses GE IC697MEM717C for program execution and data storage,forming the PLC’s”brain and memory”core.​

GE IC697MDL740:Digital input module;Collects sensor data,which is stored in GE IC697MEM717C’s data partition for real-time analysis.​

GE IC697PWR711:PLC power supply;Provides stable 5VDC to GE IC697MEM717C via the GE 90-70 backplane,ensuring memory operation.​

GE Proficy Machine Edition:Programming software;Writes/updates PLC programs to GE IC697MEM717C and retrieves stored process logs.​

GE IC697BEM713F:Ethernet communication module;Transfers data from GE IC697MEM717C to SCADA systems for remote monitoring.​

Phoenix Contact QUINT-PS/3AC/24DC/20:Redundant power supply;Ensures continuous 24VDC to the PLC rack,indirectly protecting GE IC697MEM717C data.​

GE IC697MDL750:Digital output module;Executes control commands from programs stored in GE IC697MEM717C,completing the I/O loop.​

Rittal TS 8 Cabinet:Industrial enclosure;Houses GE IC697MEM717C and PLC components,shielding against dust and temperature extremes.​

Installation,Maintenance,and Full-Cycle Support​

Installation of GE IC697MEM717C is designed for industrial efficiency:Align the module with a vacant memory slot in the GE 90-70 PLC rack,push until the locking tab engages,and secure with mounting screws.Use GE Proficy Machine Edition to format the module(partitioning program/data storage)and transfer PLC programs—no specialized hardware tools required.The module’s LED status indicator(green=normal,red=error)provides immediate post-installation verification.​

Routine maintenance is minimal,thanks to GE IC697MEM717C’s robust design:No battery replacements are needed(NVRAM eliminates this requirement),and ECC continuously monitors data integrity.For cleaning,use compressed air to remove dust from vents(avoid liquid cleaners to prevent damage).GE recommends semi-annual program backups(via Proficy software)and firmware checks to ensure compatibility with PLC controller updates.Hot-swappable capability(with PLC V5.0+firmware)allows module replacement in<5 minutes,minimizing downtime for critical systems.​

We provide a 3-year warranty for GE IC697MEM717C(extended to 4 years with registration),plus global 24/7 technical support via phone and email.Spare parts are stocked in 18+regional warehouses,ensuring delivery within 72 hours for urgent requests.Our certified engineers offer on-site installation verification,memory partitioning guidance,and data recovery support—helping teams maximize the module’s reliability.Whether you’re upgrading a mining PLC or a food processing line’s memory,we tailor support to your industrial needs.​

Ready to secure your PLC system’s data storage with GE IC697MEM717C?Contact us today for a personalized consultation,and let our experts design a memory solution that ensures data integrity,reduces downtime,and supports your automation goals.
