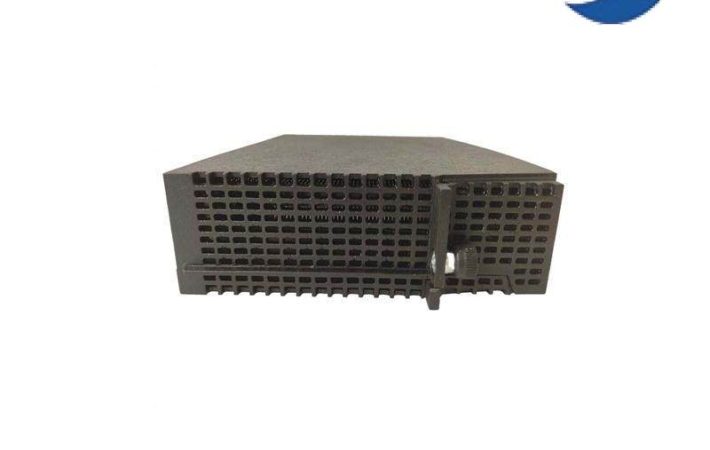

TRICONEX TCM 4355X Product Information

Product Description

Product Parameters & Specifications

• Operating Voltage: 24 VDC
• Input Channels: 16
• Output Channels: 8
• Communication Protocols: Modbus RTU, Ethernet/IP
• Certifications: CE, UL, ATEX
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 200 mm x 150 mm x 50 mm
• Weight: 2.5 kg
• Mounting Type: Rack mountable
• Accuracy: ±0.1%
• Input/Output Range: 0-20 mA (input), 4-20 mA (output)

Series

Features

• Triple Modular Redundancy (TMR): Ensures continuous operation even under fault conditions.
• Advanced Diagnostics: Real-time monitoring and fault detection to maintain system integrity.
• High Availability: Supports online module replacement without interrupting operations.
• Robust Design: Built to withstand harsh industrial environments.
• Seamless Integration: Compatible with various industrial systems and protocols.

Function

Applications

• Oil & Gas: Emergency shutdown systems (ESD), wellhead control.
• Chemical Plants: Reactor safety interlocks, batch processing control.
• Power Generation: Turbine protection, boiler management systems.
• Manufacturing: Automated production lines with safety interlocks.
• Nuclear Facilities: Safety-critical control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Manufacturing
• Nuclear facilities

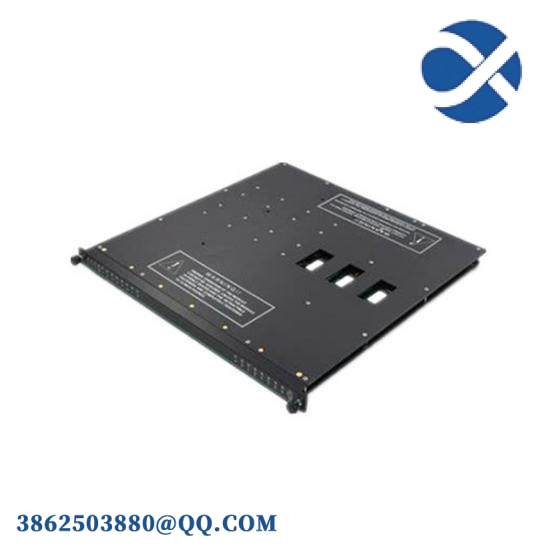

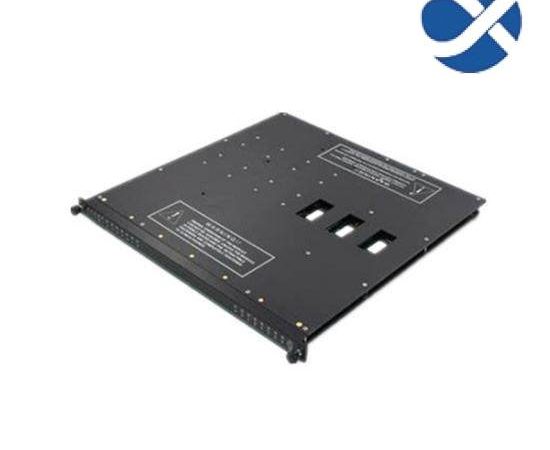

TRICONEX 1600071-001 Product Information

Product Description

Product Parameters & Specifications

• Power Supply: 24V DC ±10%
• Current Consumption: ≤2.5A @ full load
• Communication Interfaces: Ethernet (10/100 Mbps), RS-485, PROFIBUS DP/V1
• Redundancy: TMR (Triple Modular Redundancy) with 2oo3 voting logic
• Compatibility: TRICONEX Tricon CX, EX, and Legacy Systems
• Operating Temperature: -40°C to +70°C
• Certifications: SIL 3 (IEC 61508), ATEX, IECEx, UL
• Dimensions: 178mm (H) x 48mm (W) x 203mm (D)

Series

Features

• Triple Modular Redundancy (TMR): Uses three independent processing channels with built-in voting to eliminate single-point failures, achieving a diagnostic coverage (DC) of ≥99% and mean time to failure (MTTF) of over 100,000 hours.
• Hot-Swappable Design: Enables online replacement without system shutdown, reducing maintenance time by up to 50% compared to non-redundant modules.
• Advanced Diagnostics: Real-time self-testing (BIST) monitors module health, detecting faults like communication errors or memory failures within 10ms.
• Multi-Protocol Support: Seamlessly integrates with field devices and higher-level systems, supporting protocols like Modbus and OPC UA for flexible data exchange.

Function

Applications

• Oil & Gas: Emergency shutdown systems (ESD), wellhead control.
• Chemical Plants: Reactor safety interlocks, batch processing control.
• Power Generation: Turbine protection, boiler management systems.
• Manufacturing: Automated production lines with safety interlocks.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Manufacturing

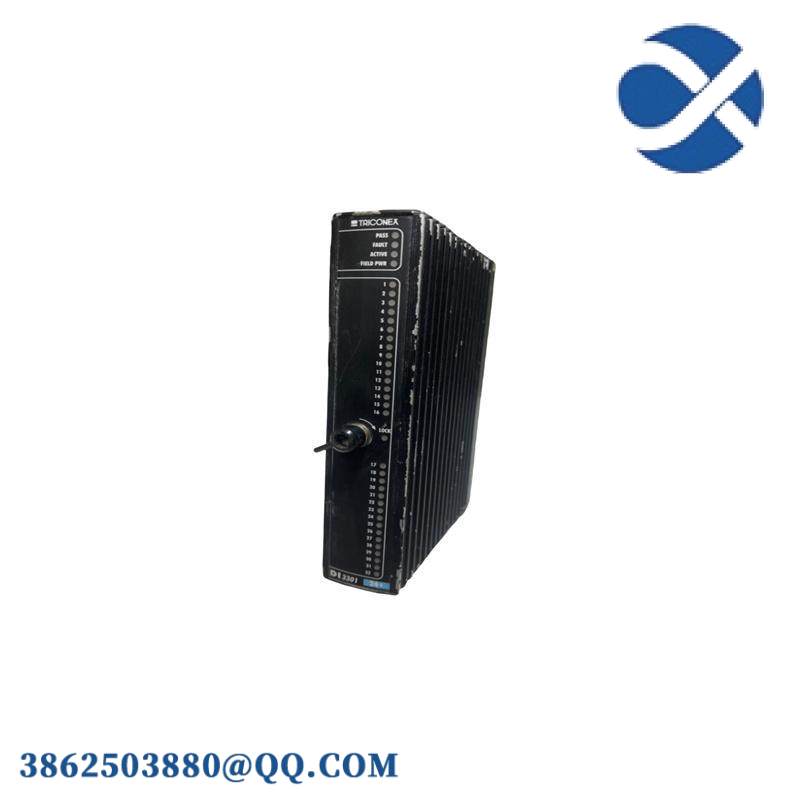

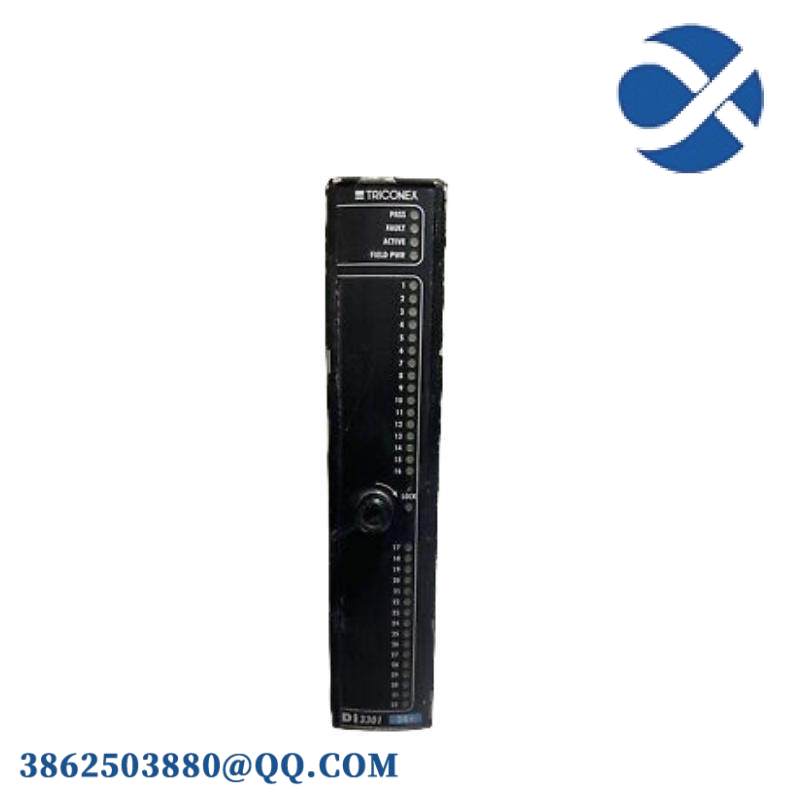

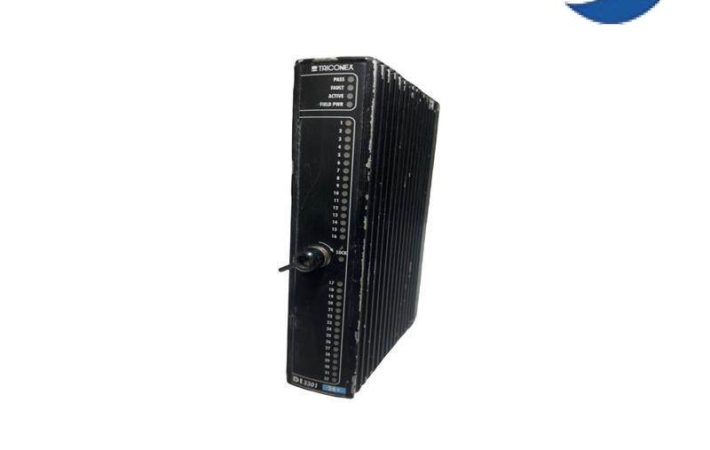

TRICONEX DI3301S2 Product Information

Product Description

Product Parameters & Specifications

• Channels: 32 (16×2 groups)
• Nominal Input Voltage: 24 VDC
• Operational Voltage Range: 15–30 VDC
• Response Time: ≤10 ms
• Input Impedance: >30 kΩ (without baseplate), 3 kΩ (with baseplate)
• Isolation Voltage: 1500Vrms channel-to-system
• Operating Temperature: -40°C to +70°C
• Power Consumption: 2.5W typical
• Dimensions: 200 mm x 100 mm x 120 mm
• Weight: 1.42 kg
• Certifications: SIL 3, IEC 61508, ATEX/IECEx

Series

Features

• Triple Modular Redundancy (TMR): Ensures continued operation even if one channel fails.
• High Safety Integrity: Complies with IEC 61508 and SIL 3 standards.
• Fast Response: Input delay of less than 10 ms, suitable for time-critical applications.
• Robust Design: Suitable for harsh industrial environments with high isolation voltage and strong electromagnetic compatibility (EMC).
• Hot-Swappable: Allows maintenance without system downtime.

Function

Applications

• Oil & Gas: Safety monitoring in exploration, refining, and distribution.
• Chemical Industry: Control systems for fertilizer, pesticide, and chemical production.
• Power Industry: Critical safety applications in generation, transmission, and distribution.
• Nuclear Plants: Reactor operation and waste management safety.
• Railway Signaling: Train safety and signal control.
• Building Automation: Safety monitoring and control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Nuclear plants
• Railway signaling
• Building automation

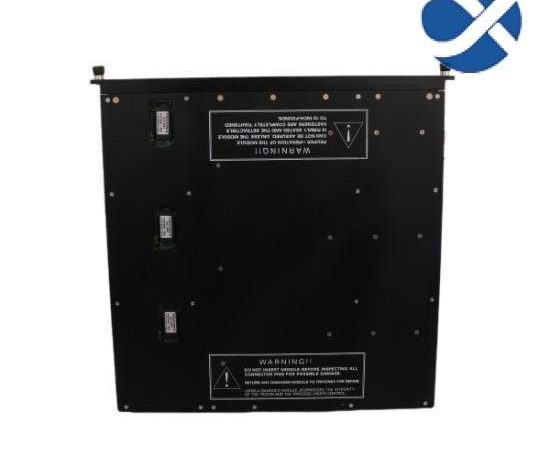

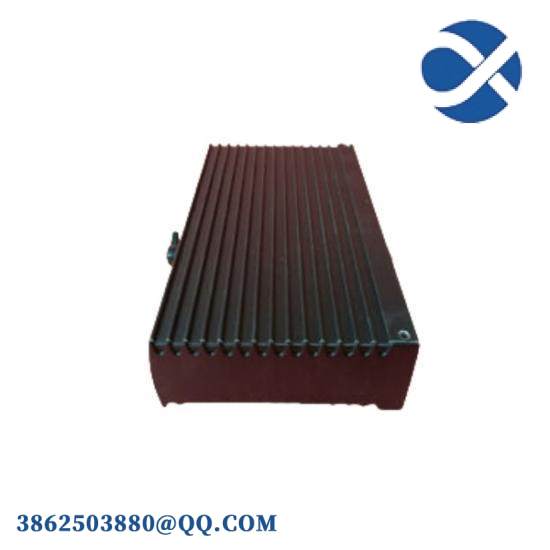

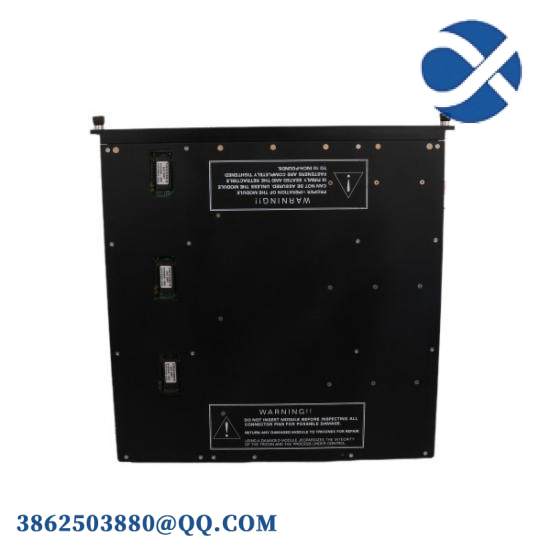

TRICONEX PM6301A Product Information

Product Description

Product Parameters & Specifications

• Input Voltage Range: 100–240 VAC (50/60 Hz) or 24–125 VDC (wide-range compatibility)
• Output Voltage: 24 VDC (regulated, with ±1% tolerance)
• Output Current: Variable, depending on configuration (expandable via parallel configuration)
• Redundancy: Dual-module redundancy support (hot-swappable for zero downtime)
• Efficiency: Up to 95% at full load, minimizing power loss and heat generation
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Protection Features: Over-voltage, over-current, short-circuit, and over-temperature protection
• Certifications: SIL 3 compliant (IEC 61508), ATEX/IECEx for hazardous areas (optional).

Series

Features

• Triple Modular Redundancy (TMR): Ensures fault tolerance and high reliability.
• Real-Time Diagnostics: Continuous monitoring of voltage, current, and temperature, with fault alerts transmitted via the system’s backplane.
• High Efficiency: Reduces energy consumption and heat output, lowering cooling requirements by up to 30%.
• Hot-Swappable Design: Allows module replacement without powering down the system, minimizing downtime.

Function

Applications

• Oil & Gas: Refineries and processing plants
• Power Generation: Nuclear and conventional power plants
• Chemical Processing: Petrochemical and specialty chemical facilities
• Manufacturing: Large-scale industrial production lines.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Manufacturing

TRICONEX 8305A Product Information

Product Description

Product Parameters & Specifications

• Input Voltage: 120 VAC / 120 VDC
• Output Current: 4 A
• Frequency Range: 47–63 Hz (AC mode)
• Power Consumption: ≤ 50 W
• Output Voltage Stability: ±0.5%
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% (non-condensing)
• Dimensions: 265 mm x 150 mm x 50 mm
• Weight: Approx. 1.5 kg
• Mounting Type: Rack-mounted
• Redundancy Type: TMR (Triple Modular Redundancy)
• LED Indicators: Power Status, Fault Alarm

Series

Features

• Enhanced Fault Tolerance: TMR design ensures that single-point failures do not compromise system integrity.
• Advanced Diagnostics: Real-time monitoring of channel health with built-in self-tests (BIST) to detect open/short circuits or signal drift.
• High-Speed Sampling: Ensures signal accuracy even in the presence of electromagnetic interference (EMI).
• Hot-Swappable Design: Allows module replacement without powering down the system, minimizing downtime.
• Wide Signal Compatibility: Supports multiple sensor types without additional hardware.

Function

Applications

• Oil & Gas: Monitoring and controlling extraction, transmission, and processing equipment.
• Power Generation: Managing control systems in power plants.
• Chemical Processing: Ensuring safety and efficiency in high-risk production lines.
• Pharmaceuticals: Supporting automated production and safety supervision.
• Transportation: Rail, marine, and aviation control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Pharmaceuticals
• Transportation

TRICONEX 8305A

TRICONEX T8431 Product Information

Product Description

Product Parameters & Specifications

• Module Type: Analog Input Module
• Supply Voltage Range: 20 to 32V DC
• Number of Inputs: 40 channels
• Input Current Range: 0-22mA
• Input Voltage Range: 0-6V DC
• Sample Update Time: 0.5ms
• Resolution: 3.9µA (1/256mA)
• Safety Accuracy: ±1% of full scale
• Calibration Accuracy: 0.03%
• Operating Temperature: -40°C to 85°C
• Weight: 1.149 kg
• Certifications: CE, UL, ATEX

Series

Features

• Triple Modular Redundancy (TMR): Ensures fault tolerance and high reliability.
• High Precision: With a measurement accuracy of up to 0.01%.
• Wide Range: Multiple range options to meet various measurement needs.
• Advanced Diagnostics: Real-time status reports, channel health monitoring, and load current monitoring.
• Hot-Swappable Design: Allows maintenance without system shutdown, minimizing downtime.
• Built-in Surge Protection: Extends the lifespan of connected devices.

Function

Applications

• Oil & Gas: Monitoring and controlling extraction, transmission, and processing equipment.
• Power Generation: Managing control systems in power plants.
• Chemical Processing: Ensuring safety and efficiency in high-risk production lines.
• Water Treatment: Controlling and monitoring water treatment equipment.
• Manufacturing: Supporting complex automation setups.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Water treatment
• Manufacturing

TRICONEX TM11-5L-88 Product Information

Product Description

Product Parameters & Specifications

• Module Type: Industrial Control Module
• Operating Voltage: 220V
• Input Range: 100-240V AC
• Output Frequency: N/A
• Processor Performance: CPU frequency ≥ 2GHz, RAM ≥ 512MB, HDD ≥ 80GB
• Communication Interfaces: Modbus RTU, CANopen, compatible with DCS/PLC systems
• Supported Protocols: RS-485, Modbus, Ethernet, etc.
• Protection Rating: IP54 (splash-proof, suitable for cabinet installation)
• Dimensions: 150mm x 100mm x 70mm
• Weight: 1.5 kg
• Operating Temperature: -20°C to +60°C
• Certifications: CE, UL, ATEX

Series

Features

• High Reliability: Triple Modular Redundancy (TMR) ensures fault tolerance and continuous operation even during module failure.
• Modular Design: Supports flexible configuration, hot-swappable maintenance, and expansion without downtime.
• Advanced HMI: Full Chinese/English graphical configuration with animation, zooming, multi-window support, and dynamic displays.
• Powerful Control Functions: Batch processing, PID loops, complex/logical/hybrid control loops, advanced algorithms, and recipe management.
• Safety-Critical Applications: Suitable for Safety Instrumented Systems (SIS), ensuring rapid emergency response.

Function

Applications

• Petrochemicals: Process control and safety monitoring.
• Oil & Gas: Emergency shutdown systems (ESD) and safety monitoring.
• Power Generation: Control systems for power plants.
• Manufacturing: Industrial automation and control.
• Pharmaceuticals: Automated production and safety supervision.
• Nuclear Power Plants: Safety Instrumented Systems (SIS) for critical operations.
• Transportation: Rail, marine, and aviation control systems.

Application Fields

• Industrial automation
• Safety control systems
• Petrochemicals
• Oil & gas
• Power generation
• Manufacturing
• Pharmaceuticals
• Nuclear power plants
• Transportation

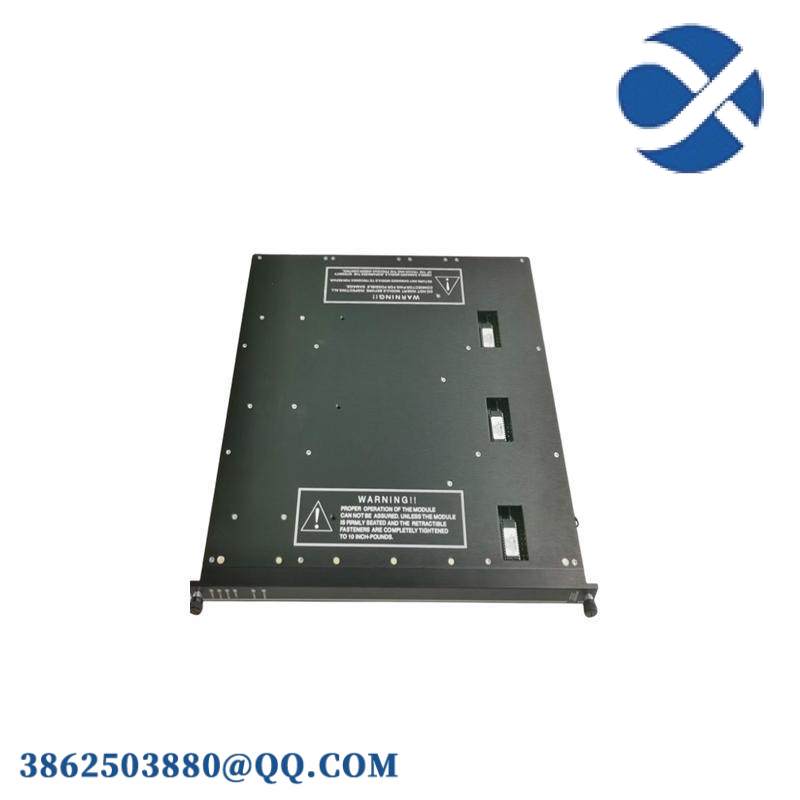

TRICONEX D06603 Product Information

Product Description

Product Parameters & Specifications

• Operating Voltage: V (Check datasheet for specific voltage requirements)
• Output Frequency: kHz (Check datasheet for specific frequency range)
• Certification: ISO 9001:2015 compliant
• Material: High-grade aluminum alloy for robust construction
• Dimensions: 100mm x 80mm x 20mm
• Weight: 0.5kg
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +105°C

Series

Features

• High Reliability: Triple redundancy design ensures continued operation even if one processor fails.
• Custom Processing: Tailored to specific application requirements.
• Fast Data Transfer: Supports dual independent read/write scanners for rapid data transmission.
• Network Communication: Compatible with Fast Ethernet and Gigabit ports, ideal for SCADA and DCS.
• Multi-Protocol Support: Includes Modbus TCP, OPC, and other industrial protocols.
• User-Friendly Interface: Easy setup and maintenance procedures.

Function

Applications

• Emergency Shutdown (ESD): Cuts off power during critical failures to prevent accidents.
• Fire & Gas (F&G): Monitors and controls fire/gas leak hazards.
• Burner Management System (BMS): Manages burner ignition/shutdown.
• High-Integrity Pressure Protection System (HIPPS): Safeguards high-pressure equipment.
• Turbine Monitoring & Control (TMC): Protects and regulates turbines.
• Refineries, Steel Plants & Power Plants: Ensures automation and safety in industrial processes.

Application Fields

• Industrial automation
• Safety control systems
• Oil & gas
• Petrochemicals
• Power generation
• Manufacturing

TRICONEX 4000093-145 Product Information

Product Description

Product Parameters & Specifications

• Module Type: Digital Input Module (Sinking/Sourcing)
• Channels: 16 isolated channels
• Input Voltage: 24 VDC ±10%
• Filter Time: Adjustable (1–100 ms)
• Redundancy: TMR architecture with built-in fault detection and voting
• Safety Certification: SIL 3 (IEC 61508), TÜV certified
• Operating Temperature: -40°C to +70°C
• Hot-Swap Capability: Yes (online replacement without system shutdown)
• Diagnostics: Channel-level fault monitoring (open circuit, overvoltage).

Series

Features

• Advanced Fault Tolerance: Achieved through its TMR design with a diagnostic coverage rate exceeding 99%, ensuring any single-channel fault is detected and mitigated.
• Hot-Swappable Design: Minimizes maintenance disruptions by allowing technicians to replace defective units without halting system operation.
• Adjustable Input Filtering: Enhances noise immunity, making it suitable for high-electromagnetic interference (EMI) environments.

Function

Applications

• Oil and Gas: Acquiring status signals from pressure switches and level sensors in offshore production facilities.
• Chemical Processing: Monitoring safety interlocks and valve positions in high-pressure reaction systems.
• Power Generation: Capturing breaker states and turbine control signals in combined cycle power plants.
• Pharmaceutical Manufacturing: Monitoring safety switches on automated mixers.

Application Fields

• Safety Instrumented Systems (SIS)
• Turbine control systems
• Pipeline monitoring networks

TRICONEX DI3301 Product Overview

Product Description

Technical Specifications

• Module Type: Digital Input Module (Triple Modular Redundant, Fail-Safe Enabled)
• Input Voltage: 24 VDC (nominal, ±25% range: 15–30 VDC)
• Number of Channels: 32 isolated channels (16 channels per submodule)
• Input Current Capacity: <1 mA per channel
• Isolation: Galvanic isolation between input and logic circuits
• Communication Protocol: Tricon proprietary backplane (10 Mbps, dual-redundant), optional RS-485 interface
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Storage Temperature: -55°C to +85°C (-67°F to +185°F)
• Vibration Resistance: 0.05 g RMS (20–500 Hz)
• Shock Resistance: 15 g peak (11 ms half-sine wave)
• Physical Dimensions: 175 mm (H) × 100 mm (W) × 220 mm (D) (6.89 in × 3.94 in × 8.66 in)
• Installation Method: Rack-mounted (compatible with Tricon 3000/4000 series chassis, hot-swappable)
• Safety Integrity Level: SIL 3 capable (when configured in a TMR system per IEC 61508)

Features

• Triple Modular Redundancy (TMR): Ensures high availability and reliability by using three independent signal paths with built-in voting logic.
• Built-in Diagnostics: Continuously monitors module health, including channel-specific fault detection for open circuits, short circuits, and overvoltage events.
• Hot-Swappable Design: Allows maintenance or replacement without powering down the system, minimizing downtime in live industrial environments.
• Wide Operating Voltage Range: Suitable for harsh industrial environments.
• Robust Construction: Built to withstand extreme temperatures, vibrations, and other environmental challenges.
• Configurable Fail-Safe States: Allows users to define the default input behavior in the event of a communication loss or internal fault.

Applications

• Oil & Gas: Monitoring wellheads, refineries, and pipelines.
• Chemical Processing: Managing chemical reactions and safety interlocks.
• Power Generation: Ensuring stable operation in power plants.
• Emergency Shutdown (ESD) Systems: Rapid response to hazards.
• Fire & Gas Detection: Critical alarm systems.
• Mechanical Protection: Vibration and overspeed protection for large rotating equipment.
