Product Description

Product Parameters

• Rated Voltage: 230V AC / 48V DC
• Rated Current (Iₙ): 6A
• Breaking Capacity (Icn): 15kA (AC 230V)
• Number of Poles: 1P (unipolar)
• Trip Characteristic: C type
• Mechanical Lifespan: ≥ 20,000 operations
• Protection Level: IP20 (must be installed in a distribution box)
• Mounting: DIN rail (35mm)
• Wire Cross-Sectional Area: 0.75mm² – 25mm²
• Torque: 1.2 N·m (recommended to use a torque screwdriver)

Product Specifications

• Overload Protection: Prevents circuit damage due to prolonged overcurrent.
• Short Circuit Protection: Quickly cuts off fault current (15kA breaking capacity).
• Manual Switch: Can be manually opened and closed for easy maintenance.
• Compliance: Meets standards IEC/EN 60947-2 and IEC/EN 60898.

Series

Features

• Reliable Protection: Ensures safe operation by protecting circuits from overloads and short circuits.
• Compact Design: Suitable for space-constrained applications.
• Easy Installation: Standard DIN rail mounting for quick and easy installation.
• Versatile Applications: Suitable for both AC and DC systems.

Functions

• Overload and Short Circuit Protection: Provides essential protection for electrical circuits.
• Manual Control: Allows manual operation for maintenance and testing.

Uses

• Industrial Control Cabinets: Protecting PLCs, inverters, and sensor circuits.
• Building Electrical Systems: Protecting lighting and socket circuits (AC 230V).
• DC Systems: Protecting 24V/48V DC control circuits (e.g., relays, solenoid valves).

Application Fields

• Industrial Automation: Protecting control circuits in manufacturing plants.
• Building Automation: Ensuring safety in electrical systems within buildings.
• DC Power Systems: Protecting low-voltage DC circuits in various applications

Product Description

Product Parameters

• Input Voltage: 120-240V AC or 24V DC (varies by model)
• Output Voltage: 24V DC
• Output Current: 10A
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to +70°C
• Dimensions: 200mm × 150mm × 75mm
• Weight: 2.5kg
• Protection Rating: IP20
• Mounting: DIN rail

Product Specifications

• Communication Interfaces: Ethernet/IP, Modbus RTU, CANopen, Profibus
• Signal Processing: High-speed data processing with real-time communication capabilities
• Control Functions: Supports motor control, power regulation, and signal processing
• Reliability: High reliability and stability, suitable for harsh industrial environments

Series

Features

• High Reliability: Suitable for demanding industrial environments
• Versatile Applications: Used in manufacturing, HVAC systems, pumps, conveyors, and more
• Modular Design: Easy to install and maintain
• Advanced Communication: Supports multiple protocols for seamless system integration

Functions

• Signal Processing: Collects and processes signals from sensors and other devices
• Control and Protection: Provides motor control and protection functions
• Data Communication: Facilitates data exchange with PLCs and SCADA systems
• Motor Control: Precise speed and torque control for various motor types

Uses

• Industrial Automation: Production line control, robot control, manufacturing process control
• Power Systems: Voltage regulation, power factor correction
• Motor Control: Speed and torque control for pumps, fans, conveyors
• Signal Processing: Signal handling in large-scale industrial automation systems

Application Fields

• Metallurgy: Motor control for rolling mills and cranes
• Mining: Conveyor and crusher motor control
• Petroleum and Chemicals: Motor control for pumps and fans
• Power Generation: Motor control for fans and pumps in power plants
• Shipbuilding: Motor control for propulsion and steering systems

Product Description

Product Parameters

• Input Voltage Range: DC 200-750V.
• Output Power: 750W.
• Current Range: 0-3A.
• Control Modes: Position control, speed control, and torque control.
• Pulse Input: Up to 5MHz.
• Encoder Input: Up to 30MHz.
• Control Precision: ±1 arc second for position control, ±5 arc seconds for speed control.
• Operating Temperature Range: -40°C to 85°C.
• Protection Class: IP55.
• Dimensions: 100mm × 100mm × 50mm.
• Cooling Method: Forced air cooling or liquid cooling.

Product Specifications

• Modular Design: Easy installation and maintenance.
• High Power Density: Compact design suitable for space-constrained applications.
• Low Switching Losses: Improved energy efficiency.
• High Short-Circuit Tolerance: Enhanced reliability.
• International Standard Certifications: Complies with IEC, ANSI, CE, and UL standards.

Series

Features

• Energy Efficiency: High efficiency and reduced energy consumption.
• Reliability: Overload, short-circuit, and undervoltage protection.
• Flexible Control: Supports multiple control methods, including vector control and direct torque control.
• High Precision: Suitable for applications requiring precise control.

Functions

• Motor Speed Control: Regulates motor speed for applications like fans, pumps, and compressors.
• Generator Grid Connection: Supports grid connection for generators, enhancing power generation efficiency.
• Power System Harmonics Control: Improves grid performance by managing harmonics.
• Renewable Energy Applications: Suitable for wind and solar power generation.

Uses

• Industrial Automation: Production line control and equipment monitoring.
• Energy Management: Power systems and renewable energy applications.
• Transportation: Rail transit and logistics systems.
• Water Treatment: Pump stations and wastewater treatment.

Application Fields

• Power Generation: Substations, power plants.
• Manufacturing: Automotive, mechanical, and electronic production.
• Process Industries: Chemical, petrochemical, and water treatment plants.
• Renewable Energy: Solar and wind power systems

Product Description

Product Parameters

• Capacitance Value: 1600µF or 2×1600µF.
• Rated Voltage: 2866V.
• Input Voltage: 110V or 220V.
• Break Capacity: 12A.
• Operating Temperature Range: -20°C to +60°C.
• Dimensions: 100mm x 75mm x 150mm.
• Weight: Approximately 1.5kg.

Product Specifications

• Communication Interfaces: Supports Modbus, Ethernet/IP.
• Installation: Modular design for easy integration with other ABB products.
• Protection Rating: IP20 for control cabinet installation.

Series

Features

• High Reliability: Industrial-grade design suitable for harsh environments.
• Versatility: Suitable for power factor correction, energy storage, filtering, and DC-DC conversion.
• User-Friendly Interface: Simplifies programming and operation.
• Efficient Performance: Optimized for high processing speed and reduced latency.

Functions

• Power Factor Correction: Improves the efficiency of AC power systems.
• Energy Storage: Provides short-term energy storage to ensure system stability.
• Smoothing and Filtering: Reduces voltage fluctuations and noise in electrical signals.
• DC-DC Conversion: Converts one DC voltage level to another.

Uses

• Power Systems: High-voltage motor drives, power transformers, and inverters.
• Industrial Automation: PLC control systems, robot control, and process control.
• Energy Management: Energy storage and regulation in solar and wind power systems.
• Transportation: Traffic control systems and logistics automation.

Application Fields

• Power Generation: Substations, power plants.
• Manufacturing: Control of production lines, quality control systems.
• Renewable Energy: Solar and wind power systems.
• Process Industries: Chemical plants, food processing facilities.
• Transportation: Traffic control systems, logistics management

Product Description

Product Parameters

• Model Number: 128877-103
• Type: Control Relay Module or Input/Output (I/O) Extension Module
• Input Voltage: 24V DC
• Operating Temperature Range: -20°C to +60°C (standard version), -40°C to +70°C (wide temperature version optional)
• Storage Temperature Range: -40°C to +85°C
• Protection Rating: IP20 (control cabinet installation), optional IP67 for harsh environments
• Communication Interface: RS485

Product Specifications

• Digital Inputs (DI): Supports 24VDC/110VDC/220VDC signals, with typical channel counts of 8/16/32, featuring photoelectric isolation.
• Digital Outputs (DO): Provides 24VDC or relay contact output (230VAC/5A), with output channels matching input channels and supporting fail-safe design.
• Analog Inputs (AI): Supports 4-20mA, 0-10V signals, with 12/16-bit resolution and ±0.1% accuracy.
• Analog Outputs (AO): Provides 4-20mA or 0-10V signal output for controlling devices like inverters and valves.

Series

Features

• High Compatibility: Directly compatible with ABB AC800M controllers, supporting modular expansion and connection to hundreds of I/O modules.
• Reliability: Industrial-grade components with an MTBF >100,000 hours, supporting fail-safe design for critical applications.
• Ease of Use: Removable terminal blocks for easy on-site wiring and replacement, with configuration via ABB 800xA system or Engineering Studio software.

Functions

• Signal Processing: Efficient handling of digital and analog signals for precise control.
• System Integration: Supports multiple communication protocols for seamless integration with existing systems.

Uses

• Industrial Automation: Controlling production lines, logistics systems, and robotic equipment.
• Process Control: Monitoring and controlling chemical, pharmaceutical, and water treatment processes.
• Energy Management: Managing power generation, smart grids, and infrastructure systems.

Application Fields

• Manufacturing: Automotive, mechanical, and electronic production.
• Energy: Power plants, substations, and renewable energy systems.
• Process Industries: Chemical, petrochemical, and water treatment plants.
• Infrastructure: Building automation, rail transit, and smart transportation systems

Product Description

Product Parameters

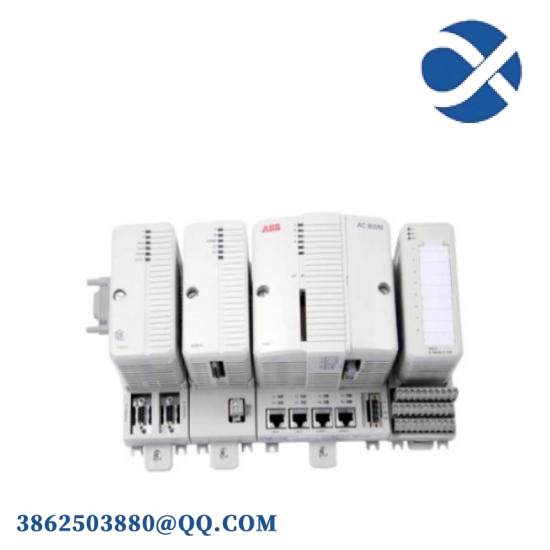

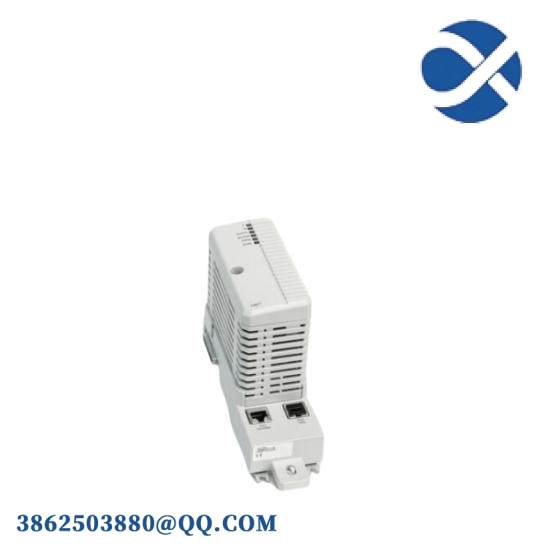

• Model Number: CI871AK01
• Part Number: 3BSE092693R1
• Communication Protocol: PROFINET IO V2.3 and V2.4
• Operating Voltage: 24V DC ±10%
• Communication Speed: 9.6 kbps to 12 Mbps (auto-negotiation)
• Max Stations: Up to 125 devices per segment
• Isolation Voltage: 1500V AC (controller to field)
• Power Consumption: 1.8W (typical)
• Operating Temperature: -25°C to +70°C
• Relative Humidity: 5-95% non-condensing
• Dimensions: 195×125×75mm
• Weight: 850g

Product Specifications

• PROFINET IO Protocol: Supports cyclic data exchange of up to 244 bytes input/output per slave.
• Redundancy: Dual-channel PROFIBUS DP connections with automatic switchover capability.
• Diagnostics: Integrated web server for real-time visualization of network topology, signal quality metrics, and slave device status.
• Future-Proof Design: Supports firmware updates without system shutdown.

Series

Features

• High-Speed Communication: Supports up to 12 Mbps transmission speed.
• Network Redundancy: Reduces network downtime by 90% compared to single-channel solutions.
• Advanced Diagnostics: Real-time monitoring of network health and device status.
• Robust Construction: Industrial-grade design with IP20 protection rating.

Functions

• Data Exchange: Facilitates high-speed, low-latency data transmission between controllers and field devices.
• Device Integration: Connects up to 125 devices per segment, supporting both cyclic and acyclic communication.
• Real-Time Monitoring: Provides real-time diagnostics and network health visualization.

Uses

• Power Generation: Integrating turbine control systems with field devices.
• Oil & Gas: Connecting subsea valves and flow meters in offshore platforms.
• Chemical Processing: Linking DCS systems to distributed I/O in batch plants.
• Manufacturing: Facilitating real-time data exchange in automated production lines.

Application Fields

• Power Generation: Turbine control system integration.
• Oil & Gas: Wellhead monitoring network consolidation.
• Pharmaceutical: Batch process equipment synchronization.
• Water Treatment: Pump station SCADA communication.
• Steel Plants: Coordinating data between ABB AC 800M controllers and Siemens S7-300 PLCs

TRICONEX RO3451

Product Description

Product Parameters

• Input Voltage: 24V DC
• Output Voltage: 24V DC
• Number of Inputs/Outputs: 16 digital inputs
• Communication Protocols Supported: Modbus, Ethernet/IP
• Operating Temperature Range: -20°C to +60°C
• Power Consumption: 20W
• Weight: 1.2 kg
• Safety Certification: SIL 3

Product Specifications

• Triple Modular Redundancy (TMR): Ensures high reliability and fault tolerance.
• Isolation: Each input channel is isolated from the system.
• Response Time: Fast response suitable for real-time monitoring.
• Channel Type: Non-public, simple type digital input channels.
• Compatibility: Compatible with various Triconex SIS controllers and digital output modules.

Series

Features

• High Reliability: TMR architecture ensures continuous operation even in the presence of hardware failures.
• Advanced Diagnostics: Built-in self-monitoring functions simplify troubleshooting and maintenance.
• Redundancy and Fault Tolerance: Ensures system stability and safety.
• Wide Operating Temperature Range: Suitable for harsh industrial environments.
• Easy Integration: Seamless compatibility with existing TRICONEX systems and other industrial equipment.

Functions

• Digital Signal Acquisition: Precise monitoring of digital signals from sensors and field devices.
• Safety Monitoring: Ensures safe operation by integrating with safety logic systems.
• Real-Time Monitoring: Provides real-time status updates and alerts for critical parameters.
• Fault Detection: Continuous diagnostics to detect and report module faults.

Uses

• Oil & Gas: Monitoring and controlling drilling operations and pipeline management.
• Power Generation: Process automation and safety applications in power plants.
• Water and Wastewater: Automation control in water treatment facilities.
• Manufacturing: Controlling machinery and production lines in various manufacturing setups.

Application Fields

• Oil & Gas Industry
• Power Generation
• Water and Wastewater Treatment
• Manufacturing and Industrial Automation
• Other Industrial Applications where high reliability and fault tolerance are critical

TRICONEX AI3351

Product Description

Product Parameters

• Input Channels: 16 or 32 channels (depending on configuration)
• Input Signal Types:
  • Voltage: -10 to +10 VDC
  • Current: 4 to 20 mA
• Sampling Rate: 1 second or 16 Hz (depending on configuration)
• Operating Temperature Range: -40°C to +70°C
• Nominal Input Current: 4-20 mA (for current input)
• Resolution: 12 bits
• Absolute Error: 0.15% of full scale (20 mA)
• Isolation Voltage: Functional-to-protective-earth isolation: 500 V DC, minimum

Product Specifications

• Triple Modular Redundancy (TMR): Ensures high reliability and fault tolerance .
• Safety Integrity Level (SIL): Complies with IEC 61508 SIL 3 standards .
• Redundant Architecture: Provides continuous operation even in the presence of hardware failures .
• Extensive Diagnostics: Continuous monitoring and fault detection capabilities .
• Fast Scan Time: <1 ms for all 32 points .

Series

Features

• High Reliability: TMR architecture ensures continuous operation even in the presence of hardware failures.
• Flexible Input Options: Supports multiple signal types, making it versatile for various sensor configurations.
• Enhanced Safety: Complies with strict safety standards, essential for industries requiring high safety integrity.
• User-Friendly: Easy integration with existing Triconex systems; straightforward configuration and maintenance.
• Robust Performance: Engineered to sustain temperature variations and other environmental stresses.

Functions

• Analog Signal Acquisition: Precise measurement of analog signals from sensors and field devices.
• Safety Monitoring: Ensures safe operation by integrating with safety logic systems.
• Real-Time Monitoring: Provides real-time status updates and alerts for critical parameters.
• Fault Detection: Continuous diagnostics to detect and report module faults.

Uses

• Oil & Gas: Monitoring pipeline pressures and temperatures.
• Chemical Processing: Real-time monitoring of chemical reactions.
• Power Generation: Tracking and regulating parameters in power plants.
• Water and Wastewater: Process control and safety monitoring in water treatment plants.
• Pharmaceuticals: Ensuring compliance and safety in drug production environments.

Application Fields

• Oil & Gas Industry
• Chemical Processing
• Power Generation
• Water and Wastewater Treatment
• Pharmaceuticals
• Other Industrial Applications where high reliability and fault tolerance are critical

TRICONEX DO2401

Product Description

Product Parameters

• Model Number: DO2401
• Part Number: 7400209-030
• Output Type: Digital
• Number of Outputs: Configurable up to 24
• Output Voltage: 24V DC (compatible with 12-36V DC range)
• Current Rating per Output: 2A
• Operating Temperature Range: -40°C to +70°C
• Communication Protocol: Tri-GP (General Purpose)
• Safety Certification: SIL3 (IEC 61508), TUV AK6

Product Specifications

• Triple Modular Redundancy (TMR): Ensures high reliability and fault tolerance.
• Output Channels: 24 digital output channels (each channel is independent).
• Output Response Time: ≤ 10ms.
• Installation Method: DIN rail or rack installation.
• Weight: ≤ 1kg.

Series

Features

• High Reliability: TMR architecture ensures continuous operation even in the event of hardware failures.
• Fast Response: Output response time of ≤ 10ms, suitable for high-real-time applications.
• Redundant Architecture: Supports redundant design for enhanced reliability.
• Wide Operating Temperature Range: Suitable for harsh industrial environments.
• Hot Swappable Support: Allows online module replacement without interrupting system operation.
• Intelligent Diagnostics: Built-in self-checking function for real-time monitoring and fault alarms.

Functions

• Digital Signal Output: Provides precise digital signal output for controlling field devices.
• Safety Control: Ensures safe operation by integrating with safety logic systems.
• Real-Time Monitoring: Provides real-time status updates and alerts for critical parameters.
• Fault Detection: Continuous diagnostics to detect and report module faults.

Uses

• Oil & Gas: For pipeline control, refinery automation, and emergency shutdown systems.
• Power Generation: For control and monitoring of power plants and substations.
• Chemical Processing: For batch control and reactor safety systems.
• Manufacturing: For high-precision control and safety monitoring in industrial automation.
• Water and Wastewater: For process control and safety monitoring in water treatment plants.

Application Fields

• Oil & Gas Industry
• Power Generation
• Chemical Processing
• Manufacturing and Industrial Automation
• Water and Wastewater Treatment
• Other Industrial Applications where high reliability and fault tolerance are critical

TRICONEX 3604E

Product Description

Product Parameters

• Nominal Voltage: 24 VDC
• Voltage Range: 22-45 VDC
• Output Signals: 16 non-commoned digital outputs
• Current Ratings: 2A per point, 10A surge/10 ms
• Load Leakage: 2 mA maximum
• Fuses: 1 per output, 2.5A fast-acting
• Point Isolation: 1500 VDC
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Power Consumption: Maximum 60W
• Number of I/O Modules: Up to 24
• Communication Protocols: Modbus, Ethernet

Product Specifications

• Triple Modular Redundancy (TMR): Ensures high reliability and fault tolerance.
• Safety Integrity Level (SIL): Supports SIL 2 and SIL 3 safety levels.
• Real-Time Monitoring and Diagnostics: Provides module status monitoring, fault diagnosis, and alarm functions.
• Wide Operating Temperature Range: Suitable for harsh industrial environments.

Series

Features

• High Reliability: TMR architecture ensures continuous operation even in the event of hardware failures.
• Safety-Critical Applications: Suitable for applications where safety is paramount and failure consequences are severe.
• Redundant Outputs: Provides redundant, isolated outputs to enhance system reliability.
• Real-Time Diagnostics: Continuous monitoring and diagnostics to quickly identify and resolve issues.
• Multiple Communication Protocols: Supports Modbus, Ethernet, and other industrial protocols for seamless integration.

Functions

• Digital Signal Output: Provides 16 non-commoned digital outputs for controlling field devices.
• Safety Control: Ensures safe operation by integrating with safety logic systems.
• Real-Time Monitoring: Provides real-time status updates and alerts for critical parameters.
• Fault Detection: Continuous diagnostics to detect and report module faults.

Uses

• Oil & Gas: For pipeline control, refinery automation, and emergency shutdown systems.
• Chemical Processing: For batch control and reactor safety systems.
• Power Generation: For turbine control and boiler safety.
• Nuclear Power: For safety-critical control in nuclear facilities.
• Manufacturing: For high-precision control and safety monitoring in industrial automation.

Application Fields

• Oil & Gas Industry
• Chemical Processing
• Power Generation
• Nuclear Power
• Manufacturing and Industrial Automation
• Other Industrial Applications where high reliability and fault tolerance are critical
