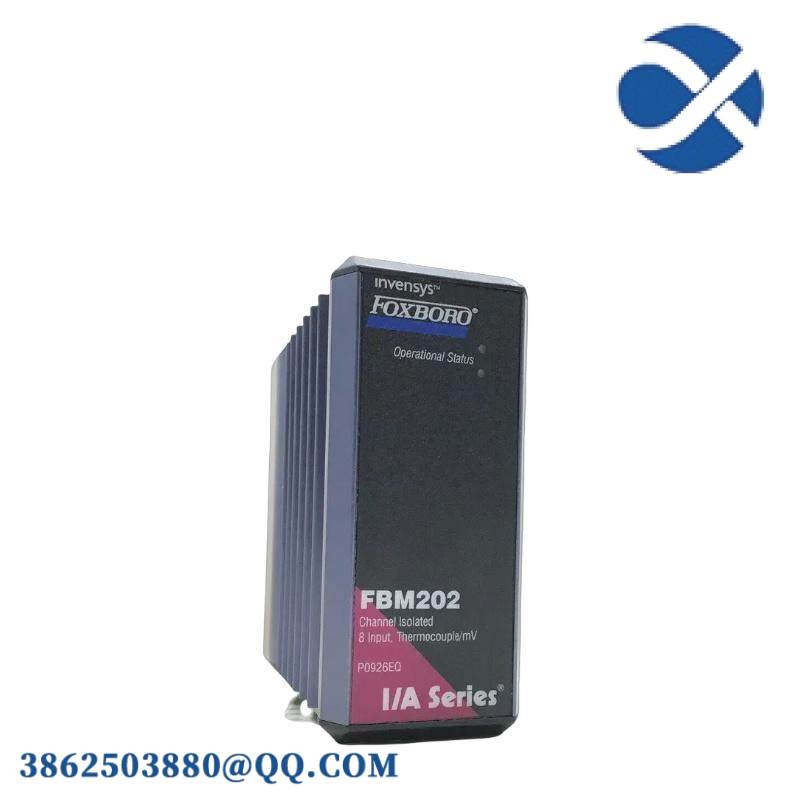

Product Description

Product Parameters

• Number of Channels: 8 thermocouple/millivolt input channels, 1 isolated RTD reference junction compensation channel
• Input Type: Thermocouple, millivolt
• Input Range: -10.5 to +69.5 mV DC
• Accuracy: ±0.03% of span for millivolt input, ±0.25°C for RTD reference junction
• Resolution: 0.1°C (0.18°F)
• Power Supply: 24 VDC
• Power Consumption: 3W (maximum)
• Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
• Dimensions: 100 mm x 50 mm x 25 mm (3.94 in. x 1.97 in. x 0.98 in.)
• Weight: 0.2 kg (0.44 lbs.)

Product Specifications

• Input Channels: Eight isolated and independent thermocouple/millivolt input channels, along with one isolated reference junction temperature compensation channel
• Signal Conversion: Each channel performs A/D signal conversion using an independent Sigma-Delta converter
• Thermocouple Types: B, E, J, K, N, R, S, T, and other millivolt signals
• Thermocouple Burnout Detection: Full upscale value
• Channel Isolation: Each channel is galvanically isolated from all other channels and ground, withstanding a potential of 600 V AC applied for one minute
• Communication Protocols: Modbus, Profibus DP, DeviceNet
• Shell Protection Level: IP66/NEMA 4X

Series

Features

• High Precision: Provides high-precision measurement to ensure reliable process control
• Reliability: Designed for harsh industrial environments with a sturdy and durable construction
• Flexibility: Supports multiple thermocouple types and fieldbus protocols to meet various application requirements
• Ease of Use: Easy to install and configure, with clear labeling and color-coded terminals
• Visual Indicators: Red and green LEDs on the front of the module provide visual status indicators
• Modular Design: Can be easily replaced without removing field device termination, power, or communication wiring

Functions

• Signal Acquisition: Collects analog signals from sensors such as thermocouples and RTDs
• Signal Conversion: Converts analog signals to digital for transmission to the control system
• Process Control: Ensures precise temperature control in industrial processes
• Fault Detection: Provides thermocouple burnout detection and channel isolation to prevent signal interference

Uses

• Industrial Automation: Used in manufacturing process control, equipment control, and production line automation
• Process Control: Monitors and controls parameters in chemical, oil, and gas industries
• Power Generation: Ensures stable operation of critical equipment in power plants
• Water Treatment: Controls water quality and treatment processes
• Pharmaceutical and Food Processing: Ensures precise control in production processes

Product Description

Product Parameters

• Communication Interface: Fiber optic
• Signal Conversion: Converts 2 Mbps signals to 10 Mbps fiber optic Ethernet signals and vice versa.
• Operating Temperature: -40°C to +70°C.
• Dimensions: 4.5 cm x 11 cm x 11.5 cm.
• Weight: 0.72 lbs.
• Power Requirements: 24 VDC ±6%, -10%.
• Maximum Power Consumption: 7W at 24 VDC.

Product Specifications

• Series: I/A Series
• Category: Communication Module
• Origin: USA
• HS Code: 3595861133822.
• Redundancy: Supports redundant configuration for enhanced reliability.
• Network Function: Provides extended network capabilities and longer total wiring distances in fiber optic networks.
• Maximum Connection: Up to 120 FBMs per I/A Series control station (depending on the selected scan cycle).
• Transmission Distance: Up to 2 km (1.24 miles) between the FCM10EF module and a multiport fiber optic converter.

Series

Features

• High Reliability: Fiber optic cables are immune to electrical noise (EMI, RFI, and lightning), providing a versatile and highly reliable means of signal transmission.
• Electrical Isolation: Provides protection from voltage differentials and ground loops.
• Compact Design: Rugged extruded aluminum exterior for physical protection of the circuits.
• Maintenance: Can be removed/replaced from the baseplate without removing power.
• Status Indicators: Six LEDs on the front of the module indicate network activity status and operational status.

Functions

• Signal Conversion: Converts 2 Mbps signals used by FBMs to 10 Mbps fiber optic Ethernet signals and vice versa.
• Network Management: Manages high-speed 2 Mbps Fieldbus communication between FBMs and control stations.
• Redundancy Support: Ensures high availability through redundant configuration.

Uses

• Industrial Automation: Used in manufacturing process control, equipment control, and production line automation.
• Process Control: Monitors and controls parameters in chemical, oil, and gas industries.
• Power Generation: Ensures stable operation of critical equipment in power plants.
• Water Treatment: Controls water quality and treatment processes

Product Description

Product Parameters

• Operating Voltage: 220V AC ±10%.
• Output Frequency: 30kHz ±5%.
• Power Consumption: Maximum input power 30W, typical operation <10W without expansion modules.
• Dimensions: 150mm × 100mm × 50mm.
• Protection Level: IP54.
• Certifications: CE, RoHS.

Product Specifications

• Frequency Stability: ±0.01%.
• Environmental Adaptability: Wide operating temperature range, suitable for extreme conditions.
• Redundancy and High Availability: Supports redundant configurations to ensure system reliability.

Series

Features

• High-Frequency Operation: Capable of operating at up to 30kHz, suitable for high-speed control applications.
• Robust Design: Industrial-grade components ensure stable operation in harsh environments.
• Versatile Applications: Can be configured as a PLC function module, control circuit board, or drive module.
• Wide Voltage Tolerance: ±10% input voltage tolerance ensures reliable operation under varying power conditions.

Functions

• Precision Control: Provides precise control for automation systems requiring high-frequency operation.
• Data Processing and Communication: Handles data processing and facilitates communication between different devices and systems.
• Real-Time Monitoring and Control: Offers real-time monitoring and control capabilities for industrial processes.

Uses

• Industrial Automation: Used in manufacturing lines, robotics, and material handling.
• Process Control: Monitors and controls processes in power systems, substations, and distribution networks.
• Energy Management: Manages energy consumption in power plants and substations.
• Transportation: Used in railway automation and marine control systems

Product Description

Product Parameters

• Model: 500SCM01
• Order Number: 1MRE450004R1
• CPU Architecture: ARM Cortex-A9 dual-core processor, 1GHz main frequency, single-core processing performance of 1.2 DMIPS/MHz.
• Memory Configuration:
  • Program Memory: 512MB (expandable to 2GB) to support complex logic and algorithms.
  • Data Memory: 256MB (with battery backup), data retention time after power failure >10 years.
  • Extended Storage: Supports microSD card (up to 32GB) for log/recipe storage.
• Control Performance:
  • Scan Cycle: Typical value 0.1-10ms (configurable), suitable for high-speed motion control (e.g., flying shears, winding).
  • Logic Operation Capability: Supports more than 100,000 instructions/second, meeting the needs of large programs (e.g., plant-wide energy management systems).
• Redundancy and High Availability:
  • CPU Redundancy: Supports 1:1 hot standby, main and standby CPUs synchronized through optical fiber, switching time <50ms (compliant with IEC 61508 SIL 2).
  • Communication Redundancy: Dual Ethernet ports support STP/RSTP/MSTP protocols for network link redundancy.
• Communication and Network Integration:
  • EtherCAT Master: Supports 1000 slave nodes, communication cycle <1ms, suitable for multi-axis synchronous motion control (e.g., printing machines, robots).
  • PROFINET/EtherNet/IP: Integrated dual Gigabit Ethernet ports, supports OPC UA server, seamlessly connects to MES/SCADA systems.
  • Modbus TCP/RTU: Compatible with traditional devices, supports 256 TCP connections and 512 RTU slaves.
  • Industrial Internet of Things (IIoT): Built-in MQTT client protocol stack, can directly connect to cloud platforms (e.g., AWS/Azure) for remote monitoring and predictive maintenance.
  • Data Encryption: Supports TLS 1.3/AES-256 encryption to ensure the security of industrial data transmission.
• Motion Control and Expansion:
  • Axis Support: Single CPU module can control 32-axis synchronous motion (through EtherCAT expansion), supporting electronic cam, flying shear, chasing shear, and other processes.
  • Positioning Accuracy: Interpolation cycle 250μs, repeat positioning accuracy ±0.01mm (combined with ABB servo drive).
  • Local Expansion: Supports 32 local I/O modules (e.g., 500DI/DO, 500AI/AO) through CEX bus, with a maximum expansion distance of 10m.
  • Remote Expansion: Connect remote I/O stations (e.g., 500XR distributed modules) through optical fiber/Ethernet to achieve 10km remote control.
• Safety and Compliance:
  • Functional Safety: Complies with IEC 61508 SIL 3, ISO 13849 PL e, TÜV Rheinland certification, supports safety PLC functions (e.g., emergency stop, safety door monitoring).
  • Safety Communication: Integrated FSoE (Functional Safety over EtherCAT) protocol for safe I/O and drive communication.
  • Environmental Adaptability: Operating temperature -25°C to +60°C (fanless cooling), IP20 protection level (rack-mounted), vibration and shock resistance in accordance with IEC 60068-2 standard.

Series

Features

• High-Performance Computing and Control: Equipped with a powerful ARM Cortex-A9 dual-core processor and ample memory to handle complex control tasks.
• Redundancy and High Availability: Ensures system reliability through CPU and communication redundancy, with quick failover capabilities.
• Advanced Communication Capabilities: Supports multiple industrial protocols and provides robust network integration options.
• Motion Control: Capable of controlling multiple axes with high precision, suitable for applications requiring synchronized motion.
• Safety and Compliance: Meets stringent safety standards and is designed for harsh industrial environments.

Functions

• Core Control: Acts as the central controller for medium to large industrial automation systems.
• Data Processing and Communication: Handles data processing and facilitates communication between different devices and systems.
• Real-Time Monitoring and Control: Provides real-time monitoring and control capabilities for industrial processes.
• Safety and Protection: Ensures system safety through compliance with international safety standards.

Uses

• Industrial Automation: Used in manufacturing lines, robotics, and material handling.
• Process Control: Monitors and controls processes in power systems, substations, and distribution networks.
• Energy Management: Manages energy consumption in power plants and substations.
• Transportation: Used in railway automation and marine control systems

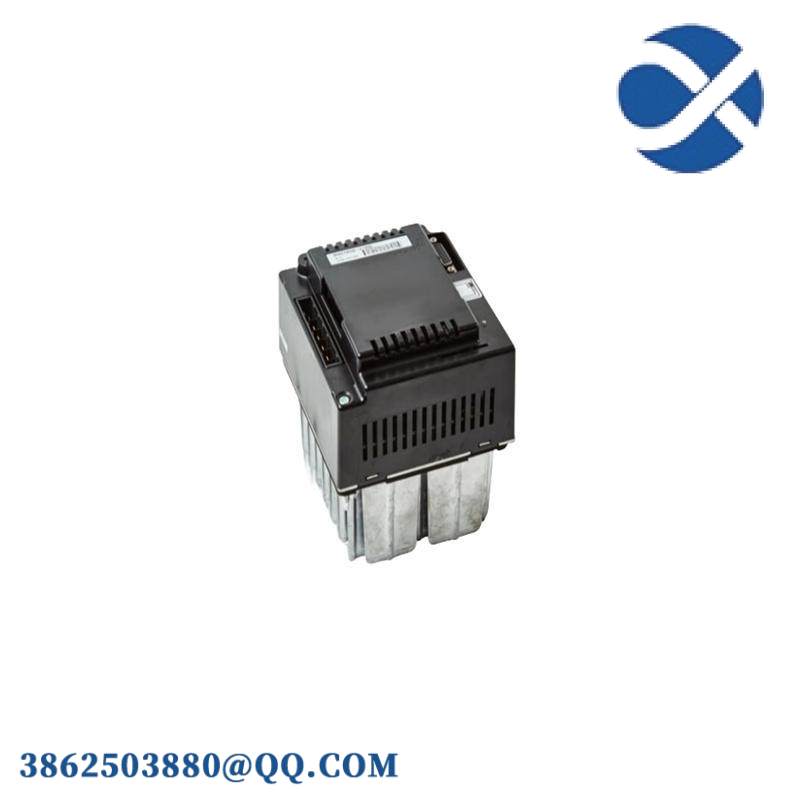

Product Description

Product Parameters

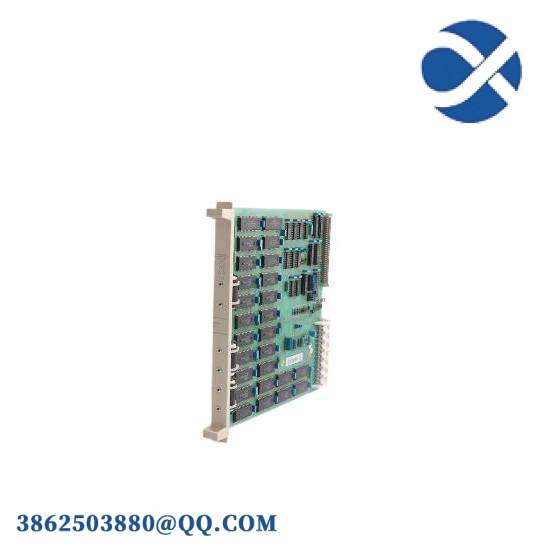

• Model: UDD406A
• Order Number: 3BHE041465P201
• Input Voltage: 24V DC ±10%
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -40°C to +125°C
• Communication Protocols: RS-485, CANbus, PROFIBUS DP/PA
• Dimensions: 120mm × 80mm × 30mm
• Weight: 200g
• Input Channels: 16 digital input terminals
• Communication Terminal: 1 RS-485 communication terminal

Product Specifications

• Terminals: 16 digital input terminals, 1 RS-485 communication terminal
• Indicators: Power and communication status LEDs
• Isolation Level: 250V AC continuous/1500V AC instantaneous isolation from field to backplane
• Filtering and Response Time: Input filter adjustable from 20ms to 2540ms, ON response time options include 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms, or 100.0ms
• Protection Level: IP65-rated enclosure

Series

Features

• High Reliability: Industrial-grade design with strong anti-interference capabilities.
• Wide Operating Temperature Range: Ensures stable operation under various temperature conditions.
• Easy to Use: Standard terminal blocks for easy connection and installation.
• Powerful Features: Supports multiple baud rates (9600bps, 19200bps, 38400bps, 57600bps, 115200bps) and a communication distance of up to 1200 meters.
• Signal Integrity: Opto-isolated inputs protect against ground loops and electromagnetic interference (EMI).
• Modular Design: Compact DIN rail mount design reduces cabinet space and enhances installation efficiency.

Functions

• Digital Input Control: Provides reliable digital input control for industrial automation systems.
• Bus Expansion: Increases the communication points of the HN800/CW800 system.
• Data Transmission: Ensures efficient data transmission between control units and modules.

Uses

• Industrial Automation: Expands communication capabilities and connects field devices in industrial automation systems.
• Process Control: Real-time monitoring and data acquisition in petrochemicals, electricity, water treatment, etc.
• Intelligent Manufacturing: Motion control and signal processing for robots and automated production lines

Product Description

Product Parameters

• Model: MTA025 EBG92026
• Rated Primary Current (Iₙ): Likely 25 A (as “025” suggests)
• Rated Secondary Current: Commonly 1 A or 5 A (standard for CTs)
• Measurement Accuracy: Typically 0.5, 1.0 (for energy metering)
• Protection Accuracy: 5P or 10P (if used for protection relays)
• Burden (Load): Usually 2.5 VA to 15 VA (depends on application)
• Frequency: 50/60 Hz (standard power frequency)
• Insulation Voltage: 300 V to 600 V (common for low-voltage CTs)
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Protection Level: IP20
• Dimensions: 180mm x 200mm x 100mm
• Weight: 3.0 kg

Product Specifications

• Construction: Split-core or solid-core (for easy installation)
• Material: Flame-retardant plastic or thermoplastic
• Standards Compliance: IEC 61869-1/-2 (current transformer standards), ANSI/IEEE C57.13 (if applicable)

Series

Features

• High Reliability: Ensures stable operation in harsh industrial environments.
• Wide Operating Temperature Range: Suitable for extreme temperature conditions.
• Flexible Installation: Split-core design allows for easy installation.
• Compliance with International Standards: Meets IEC and ANSI standards for reliability and performance.

Functions

• Current Measurement: Provides accurate current measurement for energy metering and load monitoring.
• Protection: Ensures protection of electrical systems through accurate current sensing for relays.

Uses

• Energy Metering: Used in electrical panels for accurate energy measurement.
• Load Monitoring: Monitors load in industrial systems to prevent overloads.
• Protection Relays: Used in power distribution systems for protection against faults

Product Description

Product Parameters

• Model: VBX01BA
• Power Supply: 24V DC (with ±20% voltage fluctuation allowed)
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Maximum Bus Length: 1000 meters
• Maximum Number of Slave Stations: 31
• Communication Speed: Up to 12Mbps
• Installation Method: Vertical bottom installation
• Dimensions: 180 mm × 80 mm × 160 mm
• Weight: 0.04 kg
• Protection Level: IP20

Product Specifications

• Interface Type: RS485, supports cascade expansion
• Redundancy: Supports redundant communication paths to improve system stability
• Filtering and Response Time: Input filter adjustable from 20ms to 2540ms, ON response time options include 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms, or 100.0ms
• Isolation Level: 250V AC continuous/1500V AC instantaneous isolation from field to backplane

Series

Features

• High Performance and Reliability: Ensures stable operation in harsh industrial environments.
• Flexible Installation: Vertical bottom installation design saves space.
• Enhanced Corrosion Resistance: Conformal coating suitable for harsh industrial environments.
• Redundant Communication Paths: Supports redundant communication paths to improve system stability.
• Adjustable Input Filter: Input filter time adjustable through software configuration.

Functions

• Digital Input Control: Provides reliable digital input control for industrial automation systems.
• Bus Expansion: Increases the communication points of the HN800/CW800 system.
• Data Transmission: Ensures efficient data transmission between control units and modules.

Uses

• Industrial Automation: Expands communication capabilities and connects field devices in industrial automation systems.
• Process Control: Real-time monitoring and data acquisition in petrochemicals, electricity, water treatment, etc..
• Intelligent Manufacturing: Motion control and signal processing for robots and automated production lines

Product Description

Product Parameters

• Model: TP854 3BSE025349R1
• Operating Voltage: 24V DC.
• Operating Temperature Range: -25°C to +70°C.
• Storage Temperature Range: -40°C to +85°C.
• Communication Interfaces: Ethernet, RS-485, Modbus TCP/IP.
• Dimensions: 120mm × 100mm × 40mm.
• Weight: Approximately 0.2 kg.
• Protection Level: IP20.

Product Specifications

• Installation Method: DIN rail installation.
• Material: Flame-retardant PC + 30% glass fiber (UL94 V-0).
• Mechanical Interface: 1 standard S800 I/O module position, removable screw terminals (0.2-2.5mm²), dual locking mechanism.
• Electrical Characteristics:
  • Maximum rated voltage: 300V AC/DC.
  • Rated current: 10A per terminal.
  • Contact resistance: <5mΩ (initial value).
  • Insulation resistance: >100MΩ (500V DC).
  • Withstand voltage: 2000V AC (1 minute).

Series

Features

• Modular Design: Facilitates easy system expansion and maintenance.
• High Reliability: Industrial-grade materials ensure stable operation in harsh environments.
• Compatibility: Compatible with other ABB products and supports multiple communication protocols.
• Installation Convenience: DIN rail installation for easy setup and maintenance.

Functions

• Mechanical Support: Provides a stable installation platform for other modules.
• Electrical Connection: Offers power and signal interfaces for reliable module connections.
• Control Function: Supports logic control, timing control, and switch control for complex industrial automation tasks.

Uses

• Industrial Automation: Used in factory automation, process control, and robotics.
• Power Systems: Applied in substations and power plants.
• Process Control: Monitors and controls processes in chemical and petrochemical industries.
• Water Treatment: Manages water treatment processes

Product Description

Product Parameters

• Display Size: 7-inch TFT touch screen.
• Resolution: 800 x 480 pixels.
• Processor: Intel Atom270, dual SO-DIMM DDR2 667MHz/PC3500 slots.
• Memory Capacity: Up to 4GB RAM.
• Input Voltage: AC 100-240V.
• Operating Temperature Range: -25°C to +60°C.
• Storage Temperature Range: -40°C to +85°C.
• Power Consumption: Approximately 5W.
• Dimensions: 136 x 92 mm x 25 mm.
• Weight: Approximately 250g.

Product Specifications

• Communication Interfaces: Supports multiple communication protocols, including Gigabit Ethernet (Realtek RTL8111 chip), RS-232/RS-485, and USB.
• Input/Output Modules: Built-in 16 24V switch terminals, supports multi-task program configuration.
• Design Features: Robust and durable, meets industrial-grade requirements with strong anti-interference capabilities.

Series

Features

• High-Resolution Display: 7-inch TFT touch screen with vibrant colors and visual clarity.
• User-Friendly Interface: Intuitive menu layout for quick access to key functions.
• Connectivity Options: Multiple communication ports including Ethernet, USB, and serial interfaces.
• Rugged Design: Industrial-grade protection against dust, moisture, and shock.
• Customizable Software: Compatible with ABB’s proprietary software tools for screen customization, data visualization, and process monitoring.

Functions

• Real-Time Monitoring: Displays real-time process data, trends, and alarms.
• Control Interface: Allows operators to control and configure system parameters.
• Data Visualization: Provides dynamic data display and trend charts for quick decision-making.

Uses

• Industrial Automation: Used in manufacturing lines, robotics, and material handling.
• Process Control: Monitors and controls processes in power systems, substations, and distribution networks.
• Energy Management: Manages energy consumption in power plants and substations.
• Transportation: Used in railway automation and marine control systems

Product Description

Product Parameters

• Model: CI858K01
• Order Number: 3BSE018135R1
• Catalog: AC 800M
• Country of Origin: Sweden
• Dimensions: 127.5 mm (depth) × 186 mm (height) × 59 mm (width)
• Weight: 0.7 kg
• Power Supply: 24V DC, 4W
• Operating Temperature: -25°C to +60°C
• Humidity: 5% to 95% (non-condensing)
• Communication Protocols: DriveBus, PROFIBUS DP, Modbus RTU
• Transmission Rate: Up to 12 Mbps (PROFIBUS DP mode), real-time data exchange in DriveBus mode
• Maximum Units on CEX Bus: Supports up to 12 units
• Maximum Drives per Module: Up to 24 ABB drives
• Redundancy: Does not support module redundancy; however, the DriveBus network can be configured with redundant paths using branching units (e.g., NDBU)
• Hot-Swappable: Yes

Product Specifications

• Communication Interfaces:
  • DriveBus interface for connecting to ABB drives and special I/O units.
  • CEX-Bus for communication with the AC 800M controller.
• Topology: Supports star, chain, or ring topologies via the DriveBus network.
• Data Rate: DriveBus communication speed up to 8 Mbps.
• Protection Rating: IP20.
• Certifications: CE marking, RoHS, WEEE compliant.

Series

Features

• High-Speed Data Communication: Real-time data exchange between the controller and drives, optimizing industrial process synchronization.
• Distributed Control Architecture: Supports distributed deployment of multiple devices, reducing wiring complexity and improving system reliability.
• Industrial-Grade Durability: Adopts an aluminum alloy frame and IP66 protection design to adapt to harsh industrial environments such as high temperature and vibration.
• Hot-Swappable: Allows for module replacement without system shutdown.

Functions

• Real-Time Monitoring: Displays real-time process data, trends, and alarms.
• Control Interface: Allows operators to control and configure system parameters.
• Data Visualization: Provides dynamic data display and trend charts for quick decision-making.

Uses

• Rolling Mills and Paper Machines: Realizes synchronous control of multiple drives to ensure accurate matching of speed and tension of production lines.
• Packaging and Printing Equipment: Integrates sensors and actuators through the Modbus RTU protocol to optimize automation processes.
• Power Plants and Substations: Connects AC 800M controllers and drive equipment to achieve remote monitoring and protection.
• Chemical and Petrochemical: Integrates reactors, pump stations, and other equipment through the PROFIBUS DP protocol to improve production safety
