BENTLY 132417-01 产品详情

Product Description

Product Parameters & Specifications

• Operating Voltage: 220 V。
• Output Frequency: 30 kHz。
• Certification: CE, UL。
• Series: 132417。
• Channels: 4 channels。
• Input Types: Accelerometers, velocity sensors, displacement sensors。
• Measurement Range: 0.001 g/Hz to 10 g/Hz。
• Measurement Accuracy: ±2%。
• Sampling Rate: Up to 25 kHz。
• Material: Aluminum alloy。
• Input Voltage: 24VDC。
• Output Voltage: –0.6 V DC。
• NVRAM: 8 KB。
• Voltage Range: 220VDC。
• Dimensions: 230 mm x 160 mm x 80 mm。
• Weight: 2 kg。

Features

• High Precision Measurement: Utilizes advanced sensor technology for accurate vibration measurement。
• Robust Construction: Suitable for harsh industrial environments。
• Real-time Monitoring: Provides continuous vibration monitoring and analysis。
• Alarm and Notification System: Alerts operators to potential issues。
• Easy Integration: Compatible with various industrial systems。
• Custom Processing Options: Available to meet specific project requirements。

Applications

• Mechanical Protection Systems: Ensures continuous and reliable operation of machinery。
• Predictive Maintenance: Provides data for maintenance teams to detect early signs of wear or damage。
• Real-time Condition Monitoring: Offers detailed insights into machinery health。

Application Fields

• Power Generation: Monitoring turbines and generators。
• Oil and Gas: Monitoring compressors and pumps。
• Manufacturing: Monitoring production lines and machinery。
• Petrochemical Plants: Ensuring safe operation of critical machinery

132417-01

BENTLY 135489-01 产品详情

Product Description

Product Parameters & Specifications

• Series: 3500
• Type: I/O Module with Internal Barriers
• Channels: 4 Proximity/Accelerometer (Prox/Accel) channels。
• Input Voltage: Power: 26.25 V (circuit), Signal: 13.65 V。
• Operating Temperature: -30°C to +65°C (standard), 0°C to +65°C (internal barrier)。
• Dimensions: 241.3 mm x 24.4 mm x 163.1 mm (9.50 in x 0.96 in x 6.42 in)。
• Weight: 0.46 kg (1.01 lb)。
• Certifications: CE, RoHS, Explosion-proof standards。

Features

• Intrinsic Safety: Eliminates the need for external barriers, reducing installation complexity and costs while complying with explosion-proof requirements。
• Precision Monitoring: Supports high-frequency vibration analysis (up to 30 kHz) with ±1% amplitude accuracy for early fault detection。
• Reliable Performance: Robust design ensures signal integrity in extreme conditions, minimizing downtime and maintenance。
• Flexible Integration: Coexists with standard 3500 modules in the same rack, enabling easy system upgrades。

Applications

• Mechanical Protection Systems: Ensures continuous and reliable operation of the 3500 series monitoring system。
• Industrial Automation: Provides stable power supply for various industrial automation and control systems。

Application Fields

• Power Generation: Ensuring reliable operation of vibration monitoring systems。
• Oil and Gas: Monitoring compressors and pumps。
• Chemical Industry: Monitoring critical machinery in chemical plants。
• Water Treatment: Monitoring pumps and other critical machiner

135489-01

135489-01

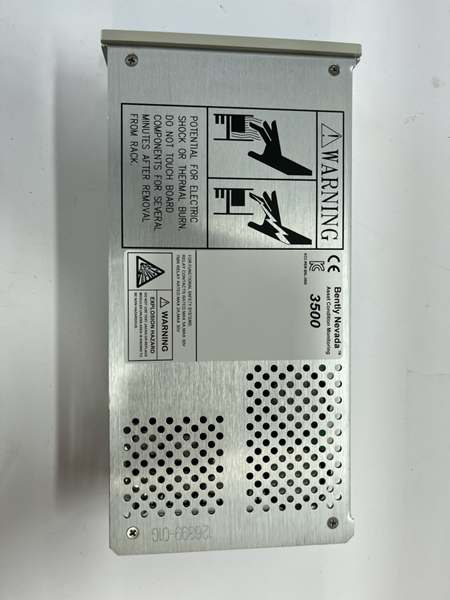

BENTLY 3500/15 114M5335-01 产品详情

Product Description

Product Parameters & Specifications

• Series: 3500/15
• Type: Low Voltage DC Power Input Module (PIM)
• Input Voltage Range: 20 to 30 VDC。
• Output Voltage: 24 VDC。
• Dimensions: 120.7 mm x 25.4 mm x 114.3 mm。
• Weight: 0.34 kg。
• Operating Temperature: -30°C to +65°C。
• Installation: Half-height module, must be installed in the designated slot on the left side of the rack。

Features

• High Reliability: Ensures stable operation in harsh industrial environments。
• Redundant Design: Supports one or two power supplies (AC or DC) for enhanced system reliability。
• Wide Input Voltage Range: Accepts a wide range of input voltages, converting them to compatible voltages for other 3500 modules。
• Non-Disruptive Installation: Installing or removing a power module does not interrupt rack operation as long as a second power supply is installed。

Applications

• Mechanical Protection Systems: Ensures continuous and reliable operation of the 3500 series monitoring system。
• Industrial Automation: Provides stable power supply for various industrial automation and control systems。

Application Fields

• Power Generation: Ensuring reliable operation of vibration monitoring systems。
• Oil and Gas: Monitoring compressors and pumps。
• Chemical Industry: Monitoring critical machinery in chemical plants。
• Water Treatment: Monitoring pumps and other critical machinery

3500/15 114M5335-01小卡

3500/15 114M5335-01小卡

TRICONEX TCM 4355X Product Information

Product Description

Product Parameters & Specifications

• Operating Voltage: 24 VDC
• Input Channels: 16
• Output Channels: 8
• Communication Protocols: Modbus RTU, Ethernet/IP
• Certifications: CE, UL, ATEX
• Operating Temperature Range: -40°C to +85°C
• Dimensions: 200 mm x 150 mm x 50 mm
• Weight: 2.5 kg
• Mounting Type: Rack mountable
• Accuracy: ±0.1%
• Input/Output Range: 0-20 mA (input), 4-20 mA (output)

Series

Features

• Triple Modular Redundancy (TMR): Ensures continuous operation even under fault conditions.
• Advanced Diagnostics: Real-time monitoring and fault detection to maintain system integrity.
• High Availability: Supports online module replacement without interrupting operations.
• Robust Design: Built to withstand harsh industrial environments.
• Seamless Integration: Compatible with various industrial systems and protocols.

Function

Applications

• Oil & Gas: Emergency shutdown systems (ESD), wellhead control.
• Chemical Plants: Reactor safety interlocks, batch processing control.
• Power Generation: Turbine protection, boiler management systems.
• Manufacturing: Automated production lines with safety interlocks.
• Nuclear Facilities: Safety-critical control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Manufacturing
• Nuclear facilities

TRICONEX 1600071-001 Product Information

Product Description

Product Parameters & Specifications

• Power Supply: 24V DC ±10%
• Current Consumption: ≤2.5A @ full load
• Communication Interfaces: Ethernet (10/100 Mbps), RS-485, PROFIBUS DP/V1
• Redundancy: TMR (Triple Modular Redundancy) with 2oo3 voting logic
• Compatibility: TRICONEX Tricon CX, EX, and Legacy Systems
• Operating Temperature: -40°C to +70°C
• Certifications: SIL 3 (IEC 61508), ATEX, IECEx, UL
• Dimensions: 178mm (H) x 48mm (W) x 203mm (D)

Series

Features

• Triple Modular Redundancy (TMR): Uses three independent processing channels with built-in voting to eliminate single-point failures, achieving a diagnostic coverage (DC) of ≥99% and mean time to failure (MTTF) of over 100,000 hours.
• Hot-Swappable Design: Enables online replacement without system shutdown, reducing maintenance time by up to 50% compared to non-redundant modules.
• Advanced Diagnostics: Real-time self-testing (BIST) monitors module health, detecting faults like communication errors or memory failures within 10ms.
• Multi-Protocol Support: Seamlessly integrates with field devices and higher-level systems, supporting protocols like Modbus and OPC UA for flexible data exchange.

Function

Applications

• Oil & Gas: Emergency shutdown systems (ESD), wellhead control.
• Chemical Plants: Reactor safety interlocks, batch processing control.
• Power Generation: Turbine protection, boiler management systems.
• Manufacturing: Automated production lines with safety interlocks.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Manufacturing

TRICONEX DI3301S2 Product Information

Product Description

Product Parameters & Specifications

• Channels: 32 (16×2 groups)
• Nominal Input Voltage: 24 VDC
• Operational Voltage Range: 15–30 VDC
• Response Time: ≤10 ms
• Input Impedance: >30 kΩ (without baseplate), 3 kΩ (with baseplate)
• Isolation Voltage: 1500Vrms channel-to-system
• Operating Temperature: -40°C to +70°C
• Power Consumption: 2.5W typical
• Dimensions: 200 mm x 100 mm x 120 mm
• Weight: 1.42 kg
• Certifications: SIL 3, IEC 61508, ATEX/IECEx

Series

Features

• Triple Modular Redundancy (TMR): Ensures continued operation even if one channel fails.
• High Safety Integrity: Complies with IEC 61508 and SIL 3 standards.
• Fast Response: Input delay of less than 10 ms, suitable for time-critical applications.
• Robust Design: Suitable for harsh industrial environments with high isolation voltage and strong electromagnetic compatibility (EMC).
• Hot-Swappable: Allows maintenance without system downtime.

Function

Applications

• Oil & Gas: Safety monitoring in exploration, refining, and distribution.
• Chemical Industry: Control systems for fertilizer, pesticide, and chemical production.
• Power Industry: Critical safety applications in generation, transmission, and distribution.
• Nuclear Plants: Reactor operation and waste management safety.
• Railway Signaling: Train safety and signal control.
• Building Automation: Safety monitoring and control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Chemical processing
• Power generation
• Nuclear plants
• Railway signaling
• Building automation

TRICONEX PM6301A Product Information

Product Description

Product Parameters & Specifications

• Input Voltage Range: 100–240 VAC (50/60 Hz) or 24–125 VDC (wide-range compatibility)
• Output Voltage: 24 VDC (regulated, with ±1% tolerance)
• Output Current: Variable, depending on configuration (expandable via parallel configuration)
• Redundancy: Dual-module redundancy support (hot-swappable for zero downtime)
• Efficiency: Up to 95% at full load, minimizing power loss and heat generation
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Protection Features: Over-voltage, over-current, short-circuit, and over-temperature protection
• Certifications: SIL 3 compliant (IEC 61508), ATEX/IECEx for hazardous areas (optional).

Series

Features

• Triple Modular Redundancy (TMR): Ensures fault tolerance and high reliability.
• Real-Time Diagnostics: Continuous monitoring of voltage, current, and temperature, with fault alerts transmitted via the system’s backplane.
• High Efficiency: Reduces energy consumption and heat output, lowering cooling requirements by up to 30%.
• Hot-Swappable Design: Allows module replacement without powering down the system, minimizing downtime.

Function

Applications

• Oil & Gas: Refineries and processing plants
• Power Generation: Nuclear and conventional power plants
• Chemical Processing: Petrochemical and specialty chemical facilities
• Manufacturing: Large-scale industrial production lines.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Manufacturing

TRICONEX 8305A Product Information

Product Description

Product Parameters & Specifications

• Input Voltage: 120 VAC / 120 VDC
• Output Current: 4 A
• Frequency Range: 47–63 Hz (AC mode)
• Power Consumption: ≤ 50 W
• Output Voltage Stability: ±0.5%
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% (non-condensing)
• Dimensions: 265 mm x 150 mm x 50 mm
• Weight: Approx. 1.5 kg
• Mounting Type: Rack-mounted
• Redundancy Type: TMR (Triple Modular Redundancy)
• LED Indicators: Power Status, Fault Alarm

Series

Features

• Enhanced Fault Tolerance: TMR design ensures that single-point failures do not compromise system integrity.
• Advanced Diagnostics: Real-time monitoring of channel health with built-in self-tests (BIST) to detect open/short circuits or signal drift.
• High-Speed Sampling: Ensures signal accuracy even in the presence of electromagnetic interference (EMI).
• Hot-Swappable Design: Allows module replacement without powering down the system, minimizing downtime.
• Wide Signal Compatibility: Supports multiple sensor types without additional hardware.

Function

Applications

• Oil & Gas: Monitoring and controlling extraction, transmission, and processing equipment.
• Power Generation: Managing control systems in power plants.
• Chemical Processing: Ensuring safety and efficiency in high-risk production lines.
• Pharmaceuticals: Supporting automated production and safety supervision.
• Transportation: Rail, marine, and aviation control systems.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Pharmaceuticals
• Transportation

TRICONEX 8305A

TRICONEX T8431 Product Information

Product Description

Product Parameters & Specifications

• Module Type: Analog Input Module
• Supply Voltage Range: 20 to 32V DC
• Number of Inputs: 40 channels
• Input Current Range: 0-22mA
• Input Voltage Range: 0-6V DC
• Sample Update Time: 0.5ms
• Resolution: 3.9µA (1/256mA)
• Safety Accuracy: ±1% of full scale
• Calibration Accuracy: 0.03%
• Operating Temperature: -40°C to 85°C
• Weight: 1.149 kg
• Certifications: CE, UL, ATEX

Series

Features

• Triple Modular Redundancy (TMR): Ensures fault tolerance and high reliability.
• High Precision: With a measurement accuracy of up to 0.01%.
• Wide Range: Multiple range options to meet various measurement needs.
• Advanced Diagnostics: Real-time status reports, channel health monitoring, and load current monitoring.
• Hot-Swappable Design: Allows maintenance without system shutdown, minimizing downtime.
• Built-in Surge Protection: Extends the lifespan of connected devices.

Function

Applications

• Oil & Gas: Monitoring and controlling extraction, transmission, and processing equipment.
• Power Generation: Managing control systems in power plants.
• Chemical Processing: Ensuring safety and efficiency in high-risk production lines.
• Water Treatment: Controlling and monitoring water treatment equipment.
• Manufacturing: Supporting complex automation setups.

Application Fields

• Industrial automation
• Safety-critical systems
• Oil & gas
• Power generation
• Chemical processing
• Water treatment
• Manufacturing

TRICONEX TM11-5L-88 Product Information

Product Description

Product Parameters & Specifications

• Module Type: Industrial Control Module
• Operating Voltage: 220V
• Input Range: 100-240V AC
• Output Frequency: N/A
• Processor Performance: CPU frequency ≥ 2GHz, RAM ≥ 512MB, HDD ≥ 80GB
• Communication Interfaces: Modbus RTU, CANopen, compatible with DCS/PLC systems
• Supported Protocols: RS-485, Modbus, Ethernet, etc.
• Protection Rating: IP54 (splash-proof, suitable for cabinet installation)
• Dimensions: 150mm x 100mm x 70mm
• Weight: 1.5 kg
• Operating Temperature: -20°C to +60°C
• Certifications: CE, UL, ATEX

Series

Features

• High Reliability: Triple Modular Redundancy (TMR) ensures fault tolerance and continuous operation even during module failure.
• Modular Design: Supports flexible configuration, hot-swappable maintenance, and expansion without downtime.
• Advanced HMI: Full Chinese/English graphical configuration with animation, zooming, multi-window support, and dynamic displays.
• Powerful Control Functions: Batch processing, PID loops, complex/logical/hybrid control loops, advanced algorithms, and recipe management.
• Safety-Critical Applications: Suitable for Safety Instrumented Systems (SIS), ensuring rapid emergency response.

Function

Applications

• Petrochemicals: Process control and safety monitoring.
• Oil & Gas: Emergency shutdown systems (ESD) and safety monitoring.
• Power Generation: Control systems for power plants.
• Manufacturing: Industrial automation and control.
• Pharmaceuticals: Automated production and safety supervision.
• Nuclear Power Plants: Safety Instrumented Systems (SIS) for critical operations.
• Transportation: Rail, marine, and aviation control systems.

Application Fields

• Industrial automation
• Safety control systems
• Petrochemicals
• Oil & gas
• Power generation
• Manufacturing
• Pharmaceuticals
• Nuclear power plants
• Transportation
