Model Type:High Resolution
Number Of Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Maximum)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type

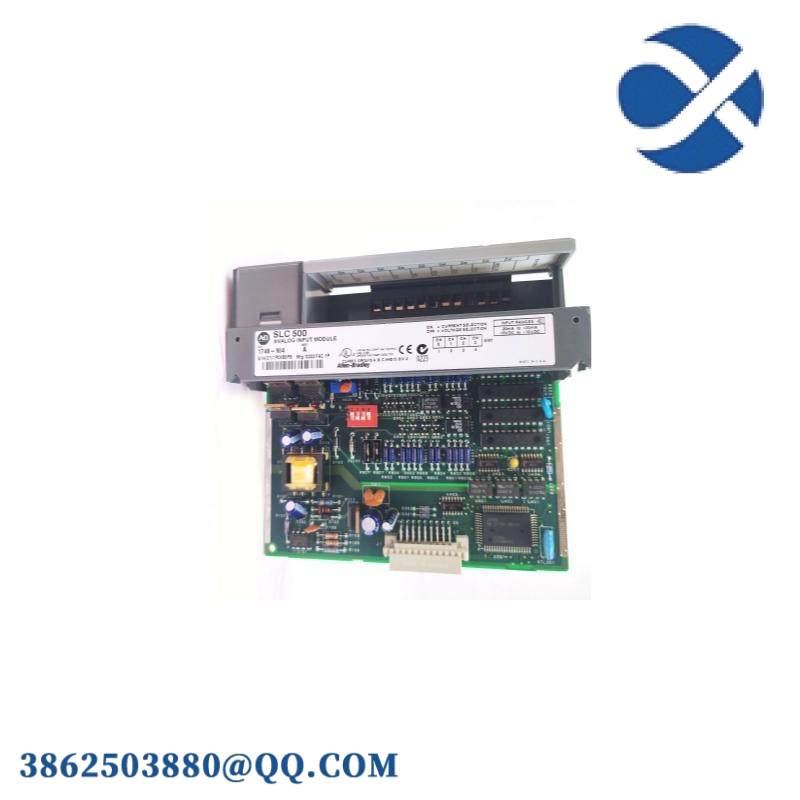

Experience unparalleled precision in data acquisition with the AB 1746-NI4A Analog Input Module from Allen Bradley. Designed for industrial automation, this module ensures reliable signal conversion and transmission, making it ideal for a wide range of applications requiring accurate sensor data.
Featuring a robust common mode voltage range and absolute input voltage capabilities, the 1746-NI4A can handle diverse electrical environments without compromising performance. Its versatile input range (-20 to 20 MA) and current rating allow for compatibility with various sensors and devices.
The module boasts high isolation levels, providing protection against backplane voltage fluctuations and ensuring a secure connection. With its open-type enclosure, it offers flexibility in installation and integration within existing systems.
Equipped with advanced features like overvoltage protection and a backplane current draw, the AB 1746-NI4A ensures operational safety and efficiency. It is compatible with ControlNet, DeviceNet, and Universal Remote I/O links, enhancing its applicability across different automation networks.
Backed by Allen Bradley’s commitment to quality and innovation, the 1746-NI4A Analog Input Module is an indispensable component for enhancing the accuracy and reliability of industrial control systems. Invest in this module to elevate your automation processes today.
