Operating Voltage:300V DC
Output Current:30A RMS
Switching Frequency:20kHz
Temperature Range:-40°C to +85°C
Board Dimensions:120mm x 120mm
Material:Aluminum Alloy
Insulation Resistance:≥10MΩ
Protection Level:IP20

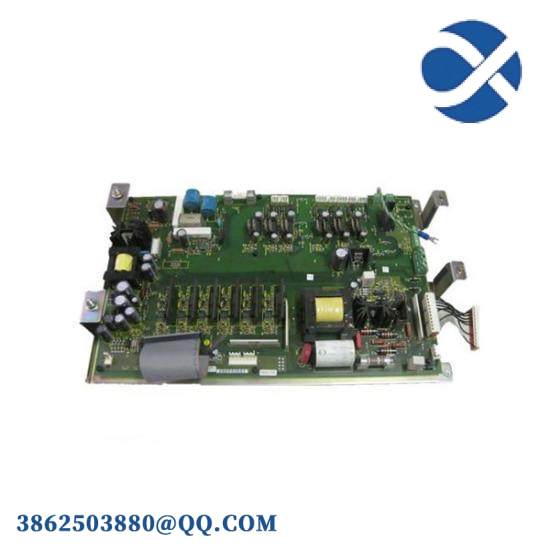

This PCB Gate Drive Board from ABB features advanced semiconductor technology, optimized for high-efficiency power conversion in industrial settings. Its robust design ensures compatibility with a wide range of drive systems, offering unparalleled performance and reliability.
Key design highlights include an integrated temperature monitoring system, which automatically adjusts cooling to maintain optimal operating conditions, extending the lifespan of the board. The high-insulation class ensures safety and prevents electrical malfunctions under harsh environmental conditions.
With its superior switching frequency capabilities, this board delivers quick and accurate control signals, enhancing system responsiveness and reducing power loss. It is engineered for continuous operation in temperatures ranging from -25°C to +70°C, making it suitable for various industrial environments.
Featuring a modular construction, the ABB 1336-BDB-SP34D PCB Gate Drive Board is easy to integrate into existing systems and upgrade as needed, providing long-term cost-effectiveness and adaptability.
Compliant with international safety standards including UL, CE, and ISO 9001, this product meets stringent quality and safety benchmarks, ensuring peace of mind for industrial operators.
