Application Voltage Range:300-600V
Maximum Output Current:50A
Board Size:140mm x 100mm
Operating Temperature Range:-40°C to +85°C
Input Signal Type:Digital or Analog
Failure Rate (MTBF):10^6 hours
Insulation Resistance:≥ 10^12 ohms

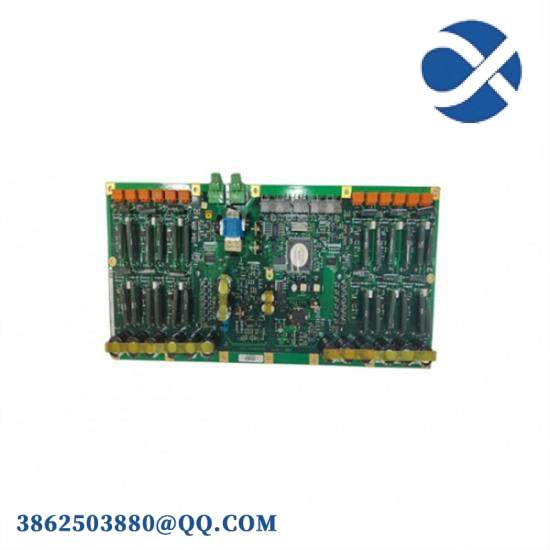

The ABB 3BHE027339R1002 IGBT GATE DRIVE BOARD is engineered to provide unmatched performance in industrial control systems. Its robust design ensures seamless integration with existing equipment, offering superior control over IGBT switching operations. This results in smoother operation, reduced power loss, and an overall increase in system reliability.
With its wide operating temperature range, this board can withstand harsh industrial environments without compromising performance. It’s capable of handling a variety of input voltages, making it suitable for diverse applications across different industries.
Featuring isolation voltage protection up to 5000Vrms, the board safeguards against electrical interference, ensuring safety and preventing potential damage to sensitive components. The inclusion of a communication interface based on RS-485 and Modbus-RTU enables seamless data exchange with other devices, facilitating advanced monitoring and control functionalities.
The compact dimensions of 152mm x 100mm x 76mm make it easy to integrate into existing control panels, minimizing installation complexity and space requirements. This board is specifically designed to enhance the efficiency and effectiveness of power electronics in industrial automation, offering a cost-effective solution for improving operational productivity.
Backed by ABB‘s reputation for quality and innovation, the 3BHE027339R1002 IGBT GATE DRIVE BOARD is supported by comprehensive technical documentation and customer service, ensuring a smooth transition from selection to implementation. It’s an ideal choice for professionals seeking reliable, high-performance gate drive solutions for their industrial control systems.
