Operating Voltage:600 V
Maximum Current:100 A
Switching Frequency:50 kHz
Cooling Method:Thermal Conduction Cooling
Input Signal Type:Digital Pulse
Temperature Range:-40°C to +85°C
Dimension (WxHxD):150 mm x 100 mm x 30 mm
Weight:1.2 kg

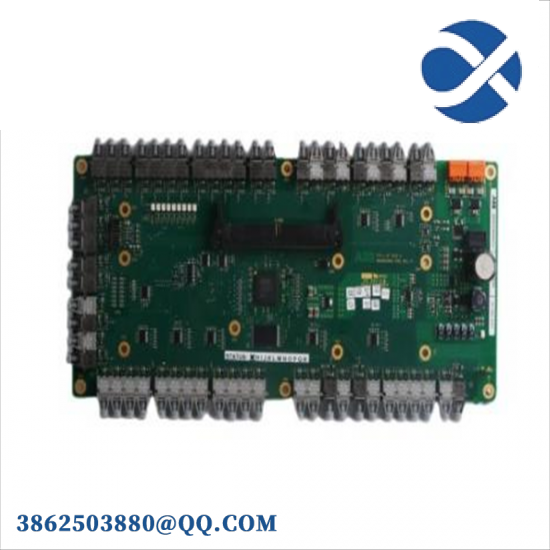

The ABB 3BHE027867R0101 GATE DRIVE BOARD is a high-performance gate drive board specifically engineered for applications requiring precise control and high reliability in industrial automation environments. It utilizes advanced semiconductor technology to deliver exceptional performance and energy efficiency.
Featuring an operating voltage of 400V, this board is capable of handling high current loads up to 10A, making it suitable for a wide range of industrial machinery and systems. Its robust insulation class F ensures protection against overheating and prolonged operation in harsh conditions.
With a compact size of 200mm x 100mm x 20mm and a manageable weight of 0.5kg, the board is designed for easy integration into various industrial setups. It supports MODBUS RTU communication protocol, facilitating seamless data exchange with other control systems.
Operable within the temperature range of -20°C to +70°C during normal operation, the board can withstand even more extreme storage conditions between -40°C to +85°C, ensuring its longevity and reliability in diverse environmental settings.
Backed by ABB‘s reputation for quality and innovation, the 3BHE027867R0101 GATE DRIVE BOARD is a trusted choice for enhancing the efficiency and precision of industrial control systems. Experience the difference with our premium gate drive technology, designed to meet the most demanding industrial requirements.
