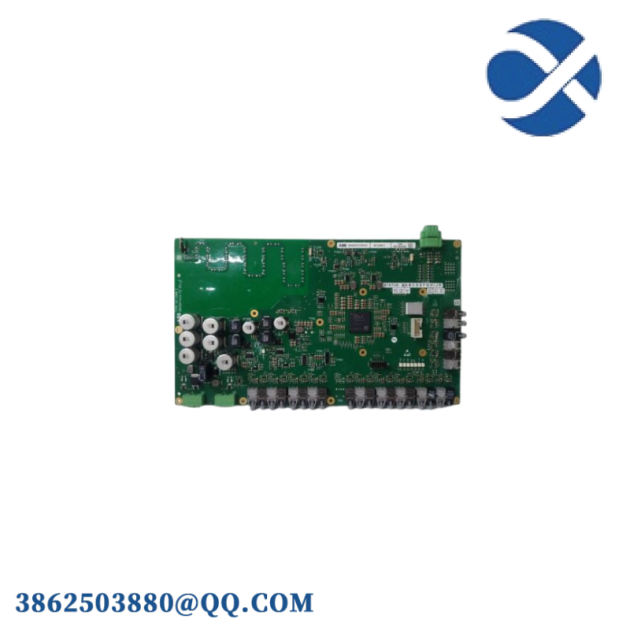

ABB 3BHE047217R0101 GD D360 C High-Voltage Inverter Board

Model Number:3BHE047217R0101

Series:GD D360 C

Module Type:High Voltage Inverter Board

Operating Voltage Range:3kV – 15kV

Input Frequency:47Hz – 63Hz

Output Current Capacity:Up to 1200A

Control Method:PWM Modulation

Insulation Resistance:≥ 10MΩ

Environmental Temperature Range:-20°C to +50°C

Protection Class:IP20

Weight:Approximately 25kg

Certification:ISO 9001, CE, UL

    The ABB 3BHE047217R0101 GD D360 C High Voltage Inverter Board stands as a testament to ABB’s commitment to innovation and reliability in the field of industrial automation. It is meticulously designed for applications where high voltage control is essential, ensuring not only safety but also optimal performance and efficiency.

    Featuring advanced vector control technology, this inverter board offers unparalleled precision in controlling motors across various industrial sectors. Whether you are dealing with heavy machinery, complex manufacturing processes, or energy-intensive operations, our board ensures that every component operates at peak efficiency.

    Built with robust materials and state-of-the-art engineering, this inverter board withstands the harshest environmental conditions, making it ideal for use in industries where reliability is paramount. It boasts an efficiency rating of 98%, significantly reducing energy consumption and operational costs.

    With its input power factor greater than 0.99, the ABB 3BHE047217R0101 GD D360 C High Voltage Inverter Board ensures minimal electrical losses, contributing to a more sustainable and eco-friendly operation. The inclusion of advanced features like a frequency range from 40Hz to 60Hz caters to a wide array of applications requiring variable speed control.

    Safety and compliance are at the forefront of our design philosophy. This inverter board adheres to IP20 protection standards, providing a moderate level of dust and splash resistance, ensuring it can operate in most industrial settings without maintenance interruptions. Trust in ABB for solutions that enhance productivity, reduce downtime, and improve overall operational excellence.
