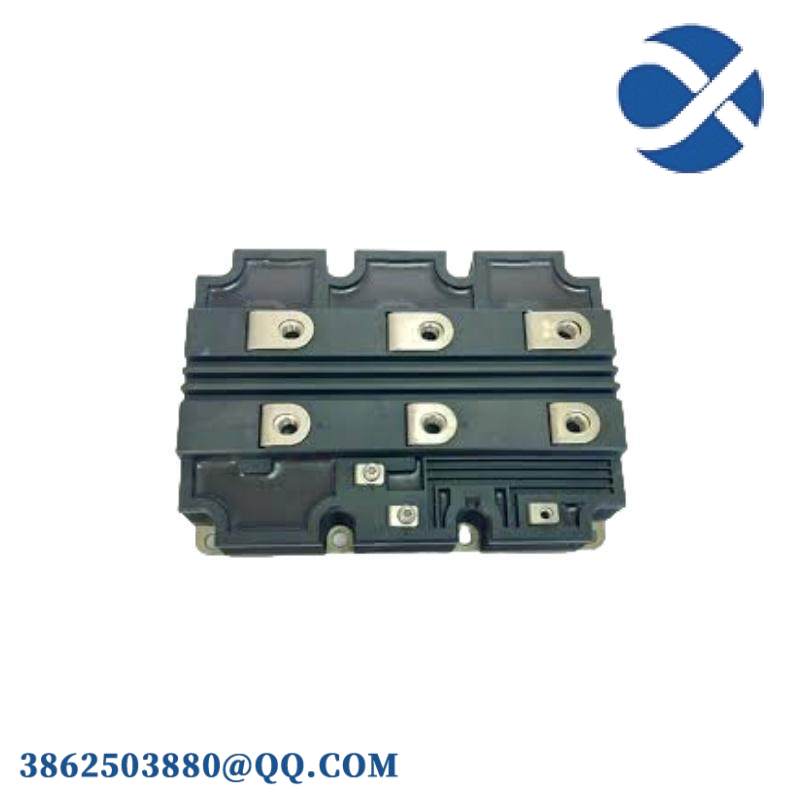

ABB 5SNA 060065G0122 – IGBT Module, High-Performance Power Electronics

Power Rating:650V/650A

Switching Frequency:Up to 16kHz

Temperature Range:-40°C to +175°C

Insulation Resistance:≥10MΩ @ 500VDC

Operating Ambient:≤40°C

Storage Temperature:from -55°C to +150°C

    The ABB 5SNA 060065G0122 IGBT module is engineered to withstand harsh industrial environments, ensuring uninterrupted operation even under extreme conditions. Its robust design incorporates advanced materials for enhanced thermal management and durability.

    With its wide operating temperature range, this module is suitable for applications across various industries, from renewable energy to heavy machinery, where reliability and efficiency are paramount.

    Equipped with a digital control interface, the ABB 5SNA 060065G0122 facilitates seamless integration with modern automation systems, allowing for precise control over power distribution and consumption.

    The inclusion of a thermal pad with forced air cooling ensures optimal heat dissipation, reducing the risk of overheating and prolonging the lifespan of the module. This feature is critical for maintaining performance in high-temperature or continuous-duty scenarios.

    Designed with safety in mind, the ABB 5SNA 060065G0122 complies with international safety standards, offering a reliable solution for power management tasks in industrial plants.
