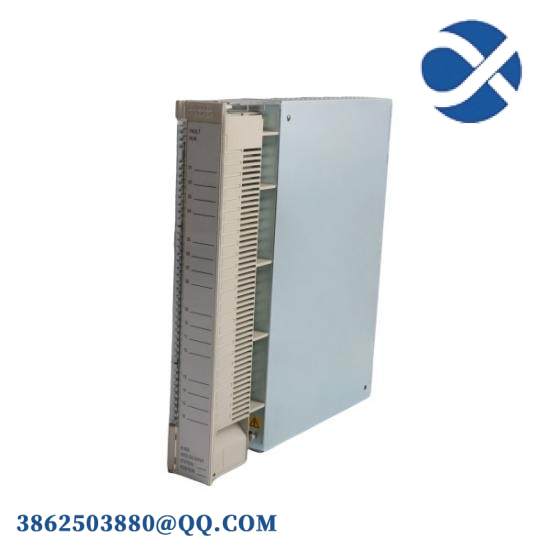

ABB AI625 AC110 3BHT300036R1 Analog Input Module

Model:AI625

Series:AC110

Sub-Model:3BHT300036R1

Analog Input Channels:16

Voltage Range:DC 0…10 V

Current Range:DC 4…20 mA

Sampling Rate:400 samples/s

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Enclosure Rating:IP20

Power Supply:24 V DC

Dimensions (WxHxD):115.2 x 10.2 x 25.4 mm

Weight:0.14 kg

    The ABB AI625 AC110 3BHT300036R1 Analog Input Module is engineered for critical industrial applications requiring exceptional precision and reliability. It seamlessly integrates with ABB‘s advanced ControlLogix PLC systems, offering unparalleled performance in data acquisition.

    With an operating temperature range of -20°C to +70°C, this module ensures robust operation in demanding environments. Its low power consumption makes it energy-efficient and suitable for long-term deployments.

    Featuring compatibility with 4-20 mA, 0-10 V, and thermocouple (RTD) inputs, the AI625 module offers versatile signal handling capabilities, essential for various industrial sensors.

    Accurate to within +/- 0.1% Full Scale, the module ensures precise measurement of physical quantities like temperature, pressure, and flow rates, critical for process control and monitoring.

    Equipped with a 1 kHz sampling rate, the AI625 provides real-time data acquisition, enabling quick response times in automated processes. Its modular design facilitates easy integration and maintenance within existing control systems.
