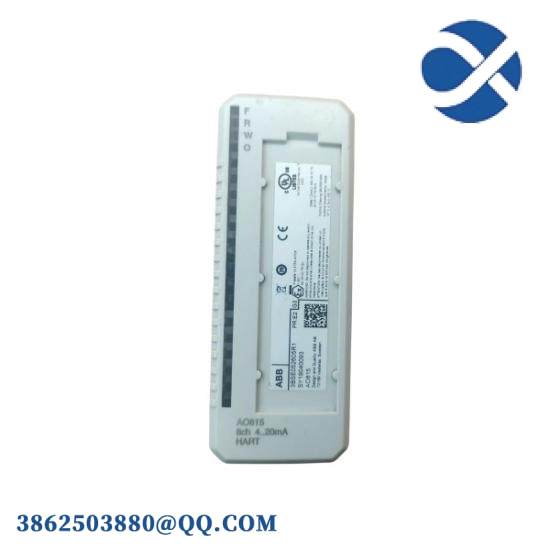

ABB AO815 3BSE052605R1 – Precision Analog Output Module

Operating Voltage:24V DC

Current Range:0 to 20mA

Resolution:12-bit

Communication Protocol:Modbus RTU

Operating Temperature:-25°C to +70°C

Dimensions:100mm x 100mm x 10mm

Weight:0.15kg

    The ABB AO815 3BSE052605R1 analog output module boasts a high-resolution design, capable of delivering exceptional precision and reliability in critical control scenarios. It supports both voltage and current outputs, making it adaptable for diverse industrial needs.

    Featuring a wide operating voltage range of 24V DC, this module ensures compatibility with most industrial power sources. Its output range spans from 0 to 10V or 4 to 20mA, providing flexibility in controlling actuators, sensors, and other devices requiring precise signal adjustments.

    With an accuracy of ±0.1% of full scale, the AO815 3BSE052605R1 ensures minimal error margins, crucial for applications where accuracy is paramount. This precision is achieved through its advanced circuitry, designed to minimize drift and interference.

    The module is equipped to handle loads up to 350 Ohms for 4-20mA outputs and up to 1kOhms for 0-10V outputs, enhancing its versatility in interfacing with a broad spectrum of peripheral devices. Its operational temperature range (-25°C to +70°C) allows for robust performance in varying environmental conditions.

    Engineered with an IP20 environmental rating, the AO815 3BSE052605R1 is protected against dust and minor impacts, ensuring durability in industrial settings. This feature, combined with its compact size and modular design, facilitates seamless integration into existing control systems.
