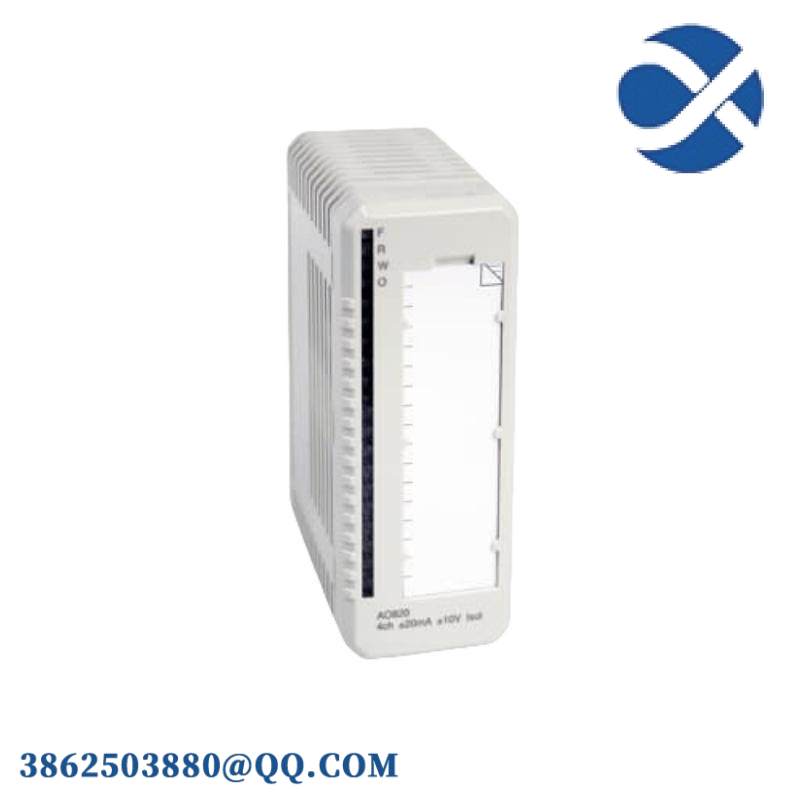

Product Type:Analog Output Module
Brand:ABB
Model Number:3BSE008546R1
Type Designation:AO820
Channel Count:4 channels
Output Range:0 to 10V DC or 4 to 20mA
Operating Temperature:-25°C to +85°C
Power Consumption:≤ 250mW
Communication Interface:MODBUS
Dimensions:121mm x 94mm x 98mm
Weight:0.2kg
The ABB AO820 3BSE008546R1 Analog Output Module is a state-of-the-art solution for industrial automation systems requiring high-precision analog output control. Designed for seamless integration with various PLCs and other industrial controllers, this module ensures stable and reliable performance across diverse manufacturing environments.
Featuring a compact and durable design, the AO820 module is engineered to withstand harsh industrial conditions. Its robust construction supports continuous operation in temperatures ranging from -25°C to +85°C, ensuring reliable performance year-round.
With its built-in RS-485 communication interface, the module offers efficient data transfer capabilities, enabling smooth communication with other components in the automation system. The terminal block connector type facilitates easy wiring and installation, making setup quick and hassle-free.
Each channel on the AO820 module provides a maximum current capacity of 20 mA, allowing it to drive a wide range of load types. The output voltage range of 0 V to 10 V DC enables precise control over actuators, valves, and other devices that require analog input signals.
The module’s compact size (100 mm x 80 mm x 32 mm) and lightweight design (0.2 kg) make it ideal for space-constrained applications. It is compatible with panel mounting, offering flexibility in installation options.
Certified to CE and UL standards, the ABB AO820 3BSE008546R1 Analog Output Module ensures safety and compliance with international regulations. This guarantees a high level of reliability and minimizes the risk of system failures.
