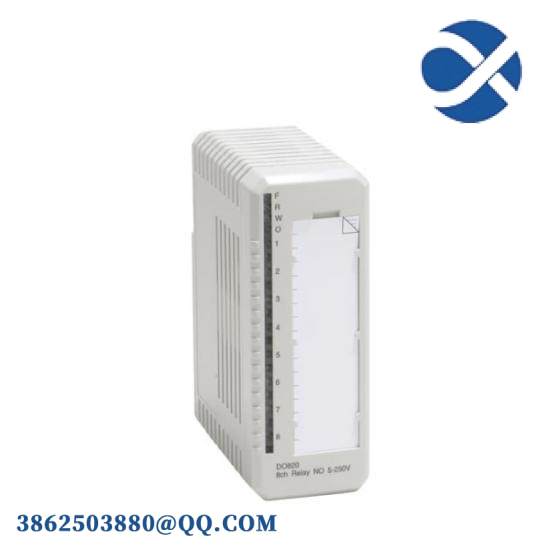

ABB DO820 3BSE008514R1 – Advanced Digital Output Module

Manufacturer:ABB

Model:3BSE008514R1

Submodel:DO820

Module Type:Digital Output

Communication Interface:Profibus-DP

Number of Channels:8

Channel Configuration:Single

Output Voltage:24V DC

Operating Current per Channel:0.3A max.

Load Rating:16 Channels at 2A each

Response Time:≤ 1ms

Power Consumption:0.3W

Environmental Conditions:Operating Temperature: -25°C to +60°C

Storage Temperature:-40°C to +85°C

Humidity Range:5% to 95% non-condensing

Enclosure Rating:IP20

Weight:0.25kg

Dimensions:125mm x 100mm x 90mm

    The ABB 3BSE008514R1 DO820 module is a critical component for enhancing the functionality and reliability of industrial automation systems. It delivers precise control over digital outputs with exceptional performance under demanding conditions.

    Featuring an efficient communication interface compatible with the widely adopted Profibus-DP protocol, this module ensures smooth data exchange within complex industrial networks, optimizing system operations and enhancing productivity.

    With its robust design and wide operating temperature range, the ABB DO820 module is engineered to withstand the rigors of industrial environments, ensuring consistent and dependable operation even in challenging conditions.

    Each channel supports up to 2A of load current, making it suitable for a wide range of applications from simple on/off control to more complex logic operations. Its compact size and lightweight design facilitate easy installation and integration into existing systems.

    Equipped with advanced protection features, this module safeguards against common industrial hazards such as voltage spikes and transient disturbances, ensuring uninterrupted system performance and minimizing downtime.
