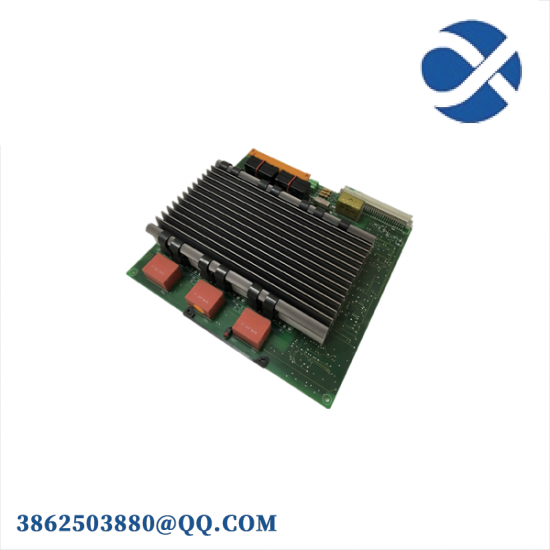

ABB DSQC236B DRIVE BOARD – Control & Automation Module

Product Type:Drive Board

Model:DSQC236B

Manufacturer:ABB

Weight:0.35 kg

Dimensions:120 x 75 x 25 mm

Input Voltage:100 – 240 Vac

Output Voltage:24 Vdc

Communication Protocol:EtherCAT

Number of Inputs:16

Number of Outputs:16

Operating Temperature:-10°C to +55°C

Storage Temperature:-40°C to +70°C

    The ABB DSQC236B Drive Board is a high-performance component engineered for applications requiring exceptional precision and reliability in motion control. This board is equipped with advanced communication protocols, enabling seamless integration into complex industrial automation setups.

    Featuring 16 digital inputs and 16 digital outputs, it provides the flexibility needed for various control scenarios, from simple feedback loops to sophisticated multi-axis control systems.

    With its robust design, the DSQC236B can withstand harsh industrial environments, ensuring reliable operation over a wide temperature range. It is compatible with EtherCAT, a high-speed industrial Ethernet protocol known for its precision and efficiency in real-time data transfer.

    Built with high-quality materials, the board ensures durability and longevity, making it an ideal choice for manufacturers seeking long-term reliability in their automation solutions. Its compact size and efficient power consumption contribute to cost-effective system integration.

    Designed with user-friendliness in mind, the DSQC236B includes intuitive setup options and compatibility with a wide range of software tools, simplifying the process of configuration and maintenance for operators and engineers alike.
