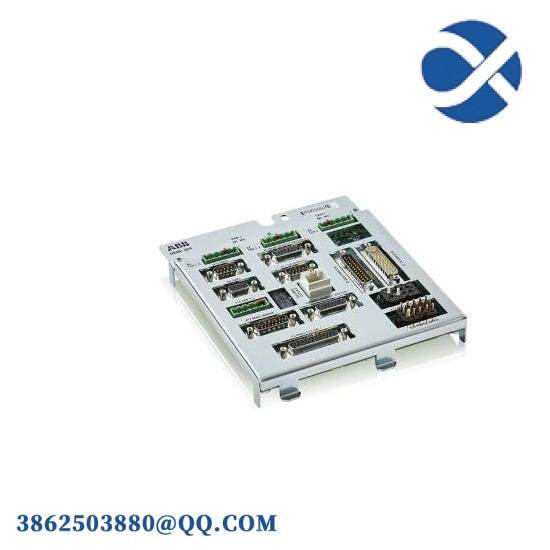

ABB DSQC504 Panel Board

Operating Voltage:24 VDC

Input Current:Max. 250 mA per channel

Communication Interface:RS-485

Power Consumption:Max. 200 mW

Dimensions:100mm x 96mm x 45mm

Operating Temperature:-25°C to +60°C

    Introducing the ABB DSQC504 Panel Board, an essential component for enhancing your industrial automation system’s efficiency. This compact and robust module is engineered to deliver unparalleled performance and reliability in diverse manufacturing environments. With its high-speed digital outputs and Profinet communication interface, it ensures seamless integration with other automation devices, facilitating real-time data exchange and control.

    Featuring a comprehensive set of specifications, the DSQC504 Panel Board supports an operating voltage of DC 24 V, ensuring compatibility with a wide array of industrial systems. It offers 8 channels of output current up to 1.5 A per channel, providing ample power for controlling motors, solenoids, and other actuators in your setup.

    Designed for durability and longevity, this panel board withstands harsh environmental conditions, with an operating temperature range from -25°C to +60°C and storage conditions from -40°C to +85°C. Its compact design allows for easy installation and integration into your existing machinery, minimizing downtime and maximizing productivity.

    Ease of use is another key feature of the DSQC504 Panel Board. Its intuitive programming interface and straightforward configuration options make it accessible to both experienced engineers and technicians new to automation technology. This user-friendly approach ensures minimal training requirements and quick implementation times, saving you valuable time and resources.

    Furthermore, the DSQC504 Panel Board comes with comprehensive documentation and support services, ensuring that you receive all the necessary guidance to maximize the benefits of your investment. With ABB’s commitment to quality and customer satisfaction, you can trust that this product will meet your stringent requirements and contribute significantly to the success of your automation projects.
