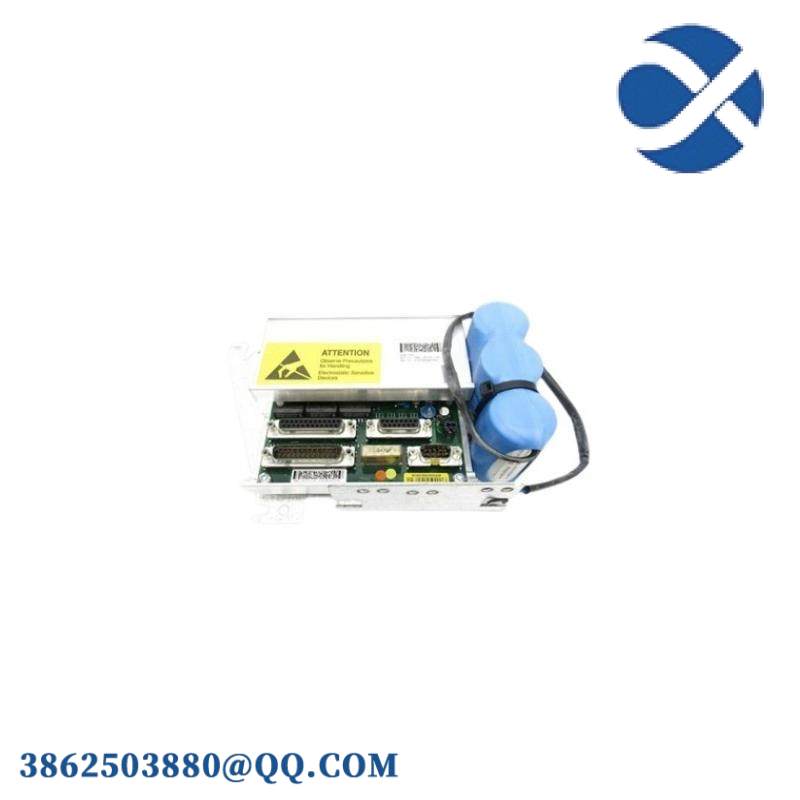

ABB DSQC562 3HAC16014-1/07 – Serial Measurement Unit

Operating Voltage:24 V DC

Data Acquisition Rate:10 kHz

Input Channels:4 Analog Input

Output Channels:4 Digital Output

Communication Protocol:DeviceNet, EtherCAT

Power Consumption:≤ 5 W

Dimensions (WxHxD):100 x 94.3 x 100 mm

Weight:≤ 165 g

    Engineered for high reliability and durability, the ABB DSQC562 3HAC16014-1 Serial Measurement Unit is ideal for integration into complex industrial systems where precise data acquisition is critical.

    Featuring an advanced 16-bit input resolution, it ensures high accuracy and precision in measuring various physical parameters such as temperature, pressure, and flow rates.

    With a sampling rate of up to 10 kHz, this module allows for real-time monitoring and control, enhancing operational efficiency and reducing downtime.

    Equipped with an RS-485 communication interface, the DSQC562 seamlessly connects with PLCs (Programmable Logic Controllers) and other industrial automation components, facilitating seamless data exchange and system integration.

    Designed to withstand harsh industrial environments, the DSQC562 operates within a wide temperature range from -20°C to +60°C, ensuring consistent performance in varying conditions.

    Compact in size yet packed with powerful features, this module is easy to install and integrate into existing systems, offering a cost-effective solution for enhancing data acquisition capabilities in industrial settings.
