Material:Industrial-grade aluminum alloy
Dimensions:180mm x 180mm x 20mm
Operating Temperature:-20°C to +60°C
Input Voltage:DC 12V to 48V
Output Current:Up to 20A
Communication Interface:RS-485 Modbus TCP
Weight:Approximately 0.7kg

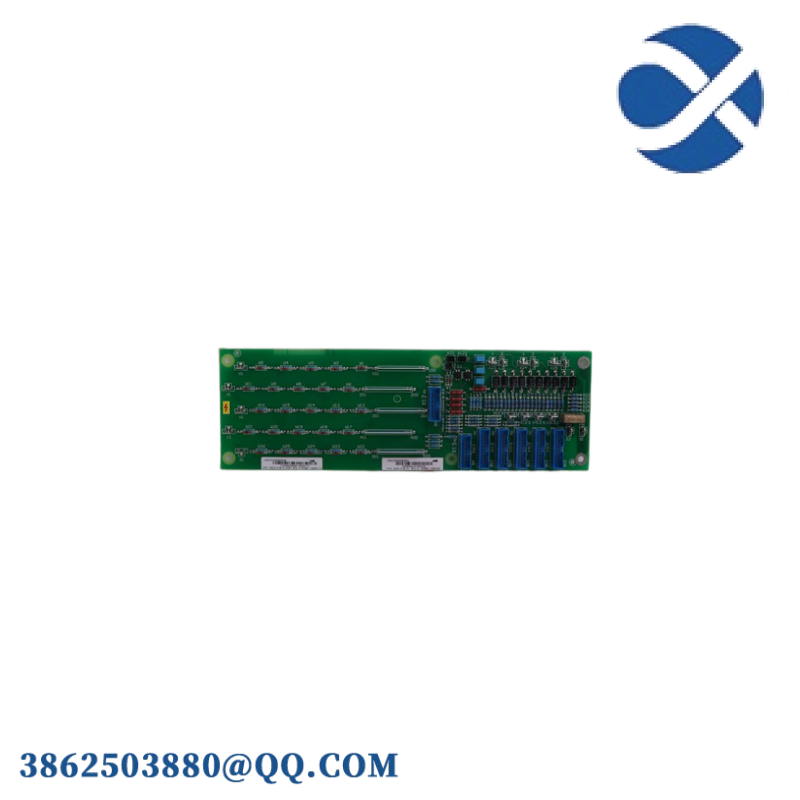

The ABB JINT-C1C, model 68614902, H 1/4 Drive Circuit Board is specifically engineered for applications requiring robust, high-speed signal processing and power distribution. This board is renowned for its superior electrical performance and thermal management capabilities, ensuring consistent operation under demanding conditions.
Crafted from premium FR-4 material with copper foil, this circuit board guarantees exceptional durability and electrical conductivity, making it ideal for use in harsh industrial environments. The inclusion of a 4-pole screw terminal block facilitates easy connection to various industrial components, streamlining the assembly process.
Featuring an RS485 communication interface, the board offers reliable data transfer, enabling seamless integration into a wide range of automation systems. Its efficient power consumption and compact design make it suitable for space-constrained applications without compromising on performance.
With an operating temperature range of -20°C to +85°C, this circuit board is designed to withstand extreme environmental conditions, ensuring reliable operation across diverse industries. The board’s lightweight construction enhances portability and reduces the overall system weight, contributing to enhanced mobility and ease of installation.
The ABB JINT-C1C, model 68614902, H 1/4 Drive Circuit Board is a testament to ABB‘s commitment to innovation and quality. It is meticulously tested to meet stringent industry standards, ensuring optimal performance and longevity in industrial settings. This product is an indispensable addition to any modern industrial control system, promising enhanced productivity and efficiency.
