Model:SDCS-PIN-48 3BSE004939R0002
Brand:ABB
Application Area:Industrial Control Systems
Operating Frequency Range:20 kHz – 2 MHz
Input Voltage Range:DC 10 V – 30 V
Output Voltage Range:DC 1 V – 30 V
Current Rating:Up to 10 mA per channel
Operating Temperature:-40°C to +70°C
Environmental Rating:IP65 Dustproof and Water-resistant
Dimensions:175mm x 125mm x 25mm
Weight:Approximately 0.5 kg

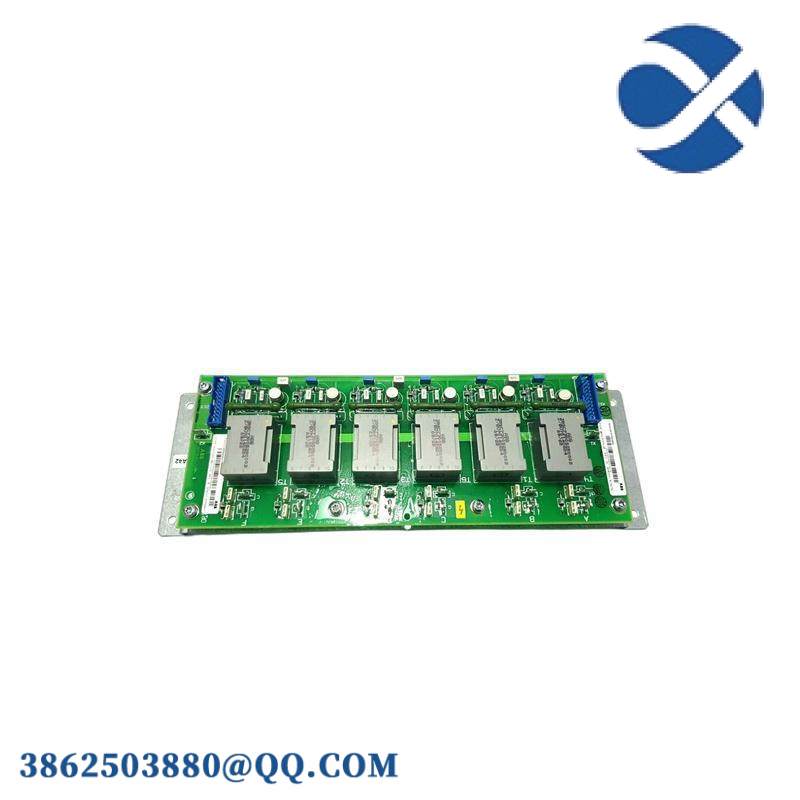

The ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board is engineered to deliver unparalleled precision and reliability in industrial automation applications. This high-performance transformer board is equipped with advanced signal processing capabilities, ensuring accurate pulse generation and transmission under various environmental conditions.
Featuring a wide operating voltage range of DC 10V to 30V, it supports diverse industrial systems with its versatile power rating of 500 mA peak load current. Its ability to generate pulses at frequencies from 20 Hz to 2 kHz makes it suitable for applications requiring high-speed signal processing.
With its output voltage options ranging from 5V to 30V, the board provides flexibility in configuring control signals according to specific system requirements. The ± 0.5% accuracy ensures minimal error in pulse width modulation, crucial for maintaining operational efficiency.
Engineered for durability, the ABB Pulse Transformer Board operates within a broad temperature range (-20°C to +60°C for normal operation and -40°C to +85°C for storage), ensuring reliable performance across different industrial environments. Its robust design guarantees long service life and minimal maintenance requirements.
Compliance with international safety standards ensures the ABB SDCS-PIN-48 3BSE004939R0002 is a safe choice for integration into existing industrial control systems. Its seamless compatibility with various control protocols and easy installation make it a preferred solution for enhancing automation processes.
