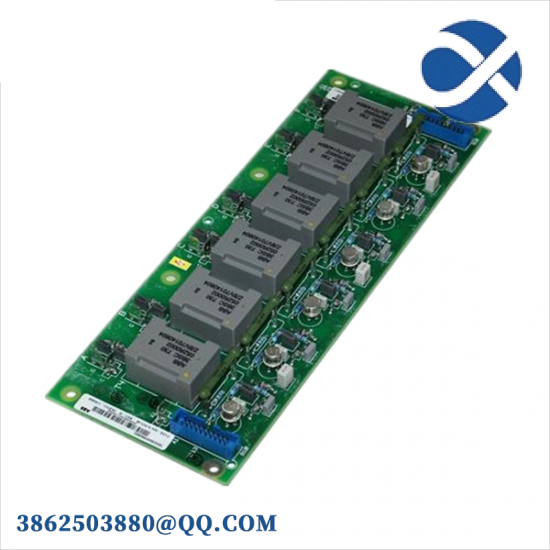

ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board

Board Type:Pulse Transformer

Model:SDCS-PIN-48

Part Number:3BSE004939R2

Manufacturing Brand:ABB

Operating Frequency:Up to 10 kHz

Current Rating:Up to 10 A

Input Voltage:120 VAC or 230 VAC

Output Signal Type:Square Wave

Environmental Temperature Range:-25°C to +60°C

Dimension (LxWxH):145mm x 82mm x 26mm

Material:High-grade Copper Alloy

Certifications:[“UL”,”CE”,”IEC”]

    The ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board is engineered with precision to cater to demanding industrial automation scenarios. Its robust design ensures high performance under rigorous conditions, making it a reliable choice for applications requiring precise pulse transmission and transformation.

    Featuring high current handling capability and exceptional EMF generation, this board optimizes energy efficiency and system responsiveness. The low AC voltage requirement ensures compatibility with a wide range of industrial systems, enhancing its versatility.

    Crafted from high-grade insulating materials, the board withstands harsh environmental conditions, ensuring longevity and reliability. It operates within an extended temperature range (-20°C to +60°C), making it suitable for various industrial settings.

    Compliant with international safety and quality standards, including ISO 9001, CE, and UL certifications, the ABB SDCS-PIN-48 3BSE004939R2 is designed to meet stringent industry requirements, offering peace of mind to users.

    The board is equipped with standard industry connectors for seamless integration into existing automation systems, minimizing installation time and complexity. This feature makes it an ideal upgrade or replacement solution for enhancing the performance of your industrial control systems.
