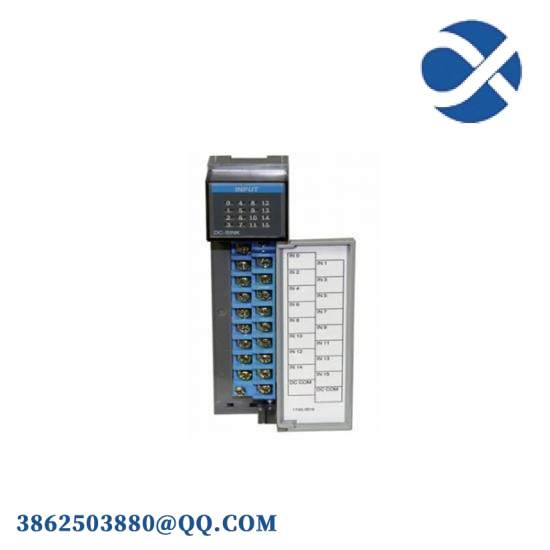

Allen Bradley 1746-IN16 Digital AC Input Module – Reliable Industrial Control Solution

Model Type:SLC500

Model Number:1746-IN16

Manufacturer:Allen Bradley

Input Channels:16

Signal Type:24 VAC/DC, 10 – 30 VAC, 10 – 30 VDC (Sink)

Off-State Input Voltage:3 VAC/VDC

Nominal Current:8 MA at 24 VAC/VDC

Off-State Current:1 MA

Current Rating:Backplane: 85 MA, Isolation: Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure Type:Open Type

Mounting:Chassis

Temperature Range:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    The Allen Bradley 1746-IN16 is engineered for demanding industrial applications, ensuring reliability and longevity in harsh environments.

    With its advanced digital AC input technology, it efficiently processes signals from sensors, enabling precise control over industrial processes.

    Featuring an open-type enclosure, this module is compatible with a wide range of Allen-Bradley PLC systems, offering seamless integration and ease of installation.

    The robust design allows for efficient current handling and isolation, protecting against voltage spikes and ensuring stable operation in industrial circuits.

    Optimized for AC/DC compatibility, the 1746-IN16 supports versatile input voltage ranges, making it suitable for diverse industrial applications.

    This module is designed to meet the highest industry standards, ensuring compliance with safety protocols and reliability expectations in industrial automation.
