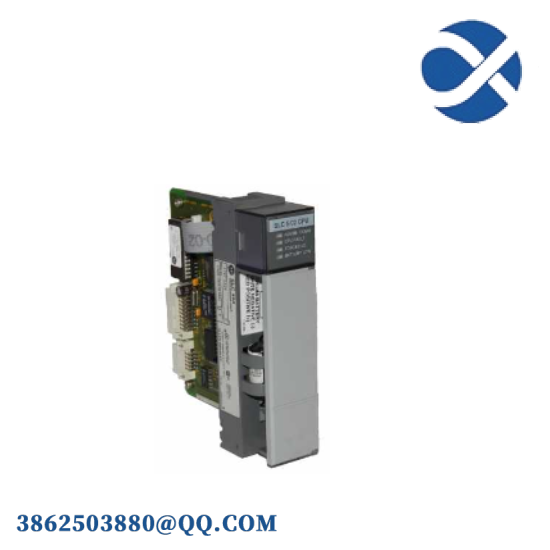

Allen-Bradley 1747-L524 SLC 5/02 Modular Processor Unit

Model Type:Modular Processor Unit

CPU Type:SLC 5/02

Manufacturer:Allen-Bradley

Memory Capacity:32 KB program memory, 8 KB data memory

Backup Storage:Flash memory

Interface:RS-232 ports

Communication Protocol:EtherNet

Mounting:Chassis

Output Configuration:Backplane: 1 MA at 5 VDC

Response Time:Typical scan time: 0.9 ms per Kword, bit execution: 0.37 μs, I/O scan: 0.255 ms

Programming Software:RSLogix™ 5000

Enclosure Design:Open type

Display:Status LEDs

Dimensions:Length: 145 mm, Width: 35 mm, Height: 142 mm

Temperature Range:0 – 60 °C

Environmental Conditions:5 – 95% non-condensing

    The Allen-Bradley 1747-L524 SLC 5/02 Modular Processor Unit is engineered to deliver high-performance processing capabilities for a wide range of industrial control systems. This compact unit is designed to integrate seamlessly into existing systems or serve as a standalone controller.

    Featuring 32 KB of memory and an advanced interface for Ethernet communication, the 1747-L524 supports both local and remote operations, enhancing connectivity and data exchange within your automation network.

    With its 0.9 MS/Kword typical scan time, 0.37 μS bit execution, and 0.255 MS I/O scan time, this processor ensures rapid and accurate data processing, critical for achieving high-speed response and efficient system operation.

    Equipped with RSLogix™ 5000 software for programming, users can easily configure and manage their automation tasks, optimizing system performance and reducing setup times.

    The open-type enclosure design allows for flexible installation options, and the presence of status LEDs provides quick visual feedback on system health and operational status, facilitating maintenance and troubleshooting.
