Memory:32 KB
Backup:Flash
Interface:DH+, RS-232 Ports
Mounting:Chassis
Backplane Output:1 MA at 5 VDC
Response Time:Typical Scan: 0.9 ms/Kword
Bit Execution:0.37 μsec
I/O Scan:0.255 ms
Programming Devices:RSLogix 5000 Software
Enclosure Type:Open
Display:Status LEDs
Dimensions:Length: 145 mm, Width: 35 mm, Height: 142 mm
Temperature Range:0 – 60 °C
Humidity:5 – 95% non-condensing
Shock Resistance:30 G
Vibration Resistance:0.015 in (displacement), 2.5 g (acceleration)
Certifications:GOST certified, KC certified, MARINE certified, UL listed, cUL listed, CE marked, C-Tick certified

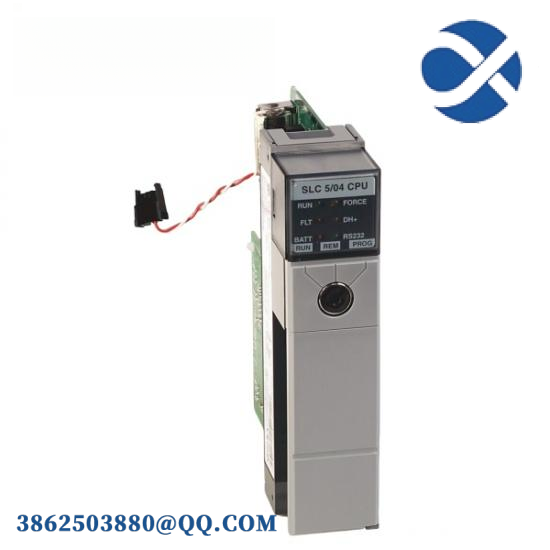

The Allen Bradley 1747-L542 control module is engineered for seamless integration into various industrial applications. Featuring a robust open-type enclosure with status LEDs for easy monitoring, this module supports DH+ and RS-232 interfaces, facilitating efficient communication within industrial networks. Its compact dimensions (145 mm x 35 mm x 142 mm) make it ideal for space-constrained environments without compromising on performance or reliability. Designed with advanced bit execution speed (0.37 MIC-SEC) and typical scan time (0.9 MS/Kword), this module ensures rapid response and high-speed data processing, enhancing overall system efficiency. Certified to operate across a wide range of temperatures (0 – 60 DEG C) and under harsh environmental conditions, including humidity levels up to 95% non-condensing and shock resistance up to 30 G, this control unit is built to withstand demanding industrial settings. It also meets stringent safety standards with certifications like GOST, KC, MARINE, UL, cUL, CE, and C-Tick.
