GE 239-RTD-AN: Advanced Motor Protection Relay for Industrial Control Systems

Insulation Voltage:300 V

Fuse Rating:5 x 20 mm, 250 V, 2.5 A

Overload Curves:Trip Time Accuracy ± 1% of Displayed Value

Thermal Capacity, % Full Load:Programmable

Phase Current:Accurate

RFI Test:50 MHz/15 W

Transmitter Short Circuit and Ground Trip:S/C Trip Level 1 to 11 x CT PRI/OFF

Storage Temperature Range:-40 to 158°F

Unbalance Delay:0-60 s

Ventilation Requirements:None

Control Power:Standard 70 to 265 VAC

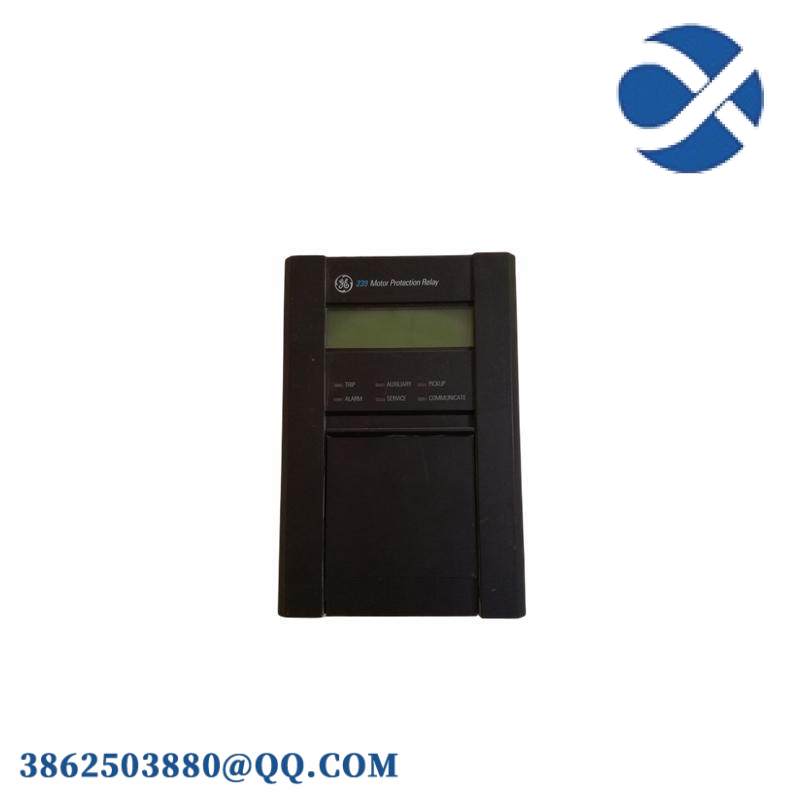

    The GE Multilin 239-RTD-AN Motor Protection Relay is designed to safeguard industrial motors from critical failures, ensuring optimal performance and longevity.

    With its programmable settings, this relay allows for precise customization to suit various motor requirements, including the selection of RTD types (nickel, platinum, or copper) for enhanced accuracy and reliability.

    Featuring a clear front-facing LCD display, users can easily monitor critical parameters such as status, temperature, and current, providing real-time insights into motor health and operational conditions.

    Compact and versatile, the 239-RTD-AN is compatible with most motor starters, making it a flexible solution for diverse industrial applications.

    This product includes advanced features like breaker failure protection, overload warning, ground fault protection, and locked rotor protection, ensuring robust safety and operational integrity.

    Equipped with a harsh environmental coating for enhanced durability, this relay is suitable for use in challenging conditions, guaranteeing consistent performance under extreme environments.
