Model Number:DS3800HCVA1G
Manufacturing Brand:General Electric (GE)
Series:Mark IV DS3800
Board Type:Digital to Analog Output
Number of Jumper Settings:14
Indicator LEDs:2 Amber
Connectors (Front Accessible):3
Trimmer Resistors:4
DC to DC Voltage Regulators:2
Physical Dimensions:L x W x H (in mm): 152 x 100 x 20
Weight:0.34 kg
Compatibility:GE Turbine Control Systems

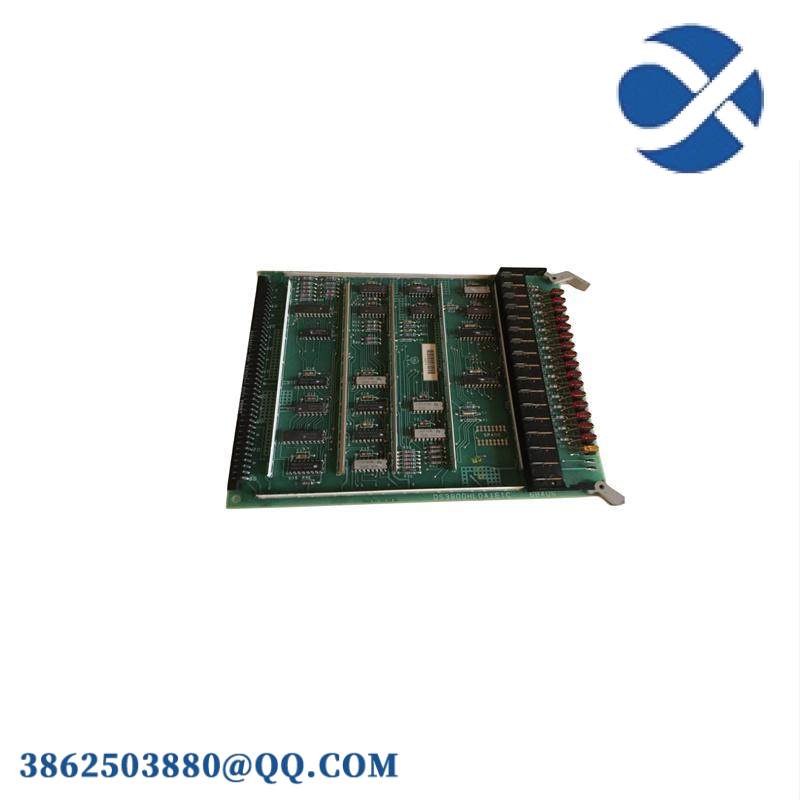

The GE DS3800HCVA1G Circuit Board is meticulously designed for high performance in industrial control environments. Its modular connector ensures effortless attachment to drive systems, while retention levers securely hold it in place. This board boasts an array of advanced features including 14 adjustable jumpers for customizable settings and two amber indicator LEDs for operational status monitoring.
Accessible from the front of the board, three connectors offer flexible connectivity options, facilitating integration into various control systems. Additionally, four trimmer resistors provide fine-tuning capabilities for precision applications. The inclusion of two DC to DC voltage regulators ensures stable power supply and system reliability.
Manufactured with robust materials, this circuit board is engineered to withstand harsh industrial conditions, ensuring longevity and dependability. Its wide operating temperature range (-40°C to +85°C) guarantees seamless performance across diverse environments.
The GE DS3800HCVA1G is not just a component; it’s a cornerstone in the assembly of sophisticated industrial control systems. Its compatibility with standard 12VDC power supplies makes it universally applicable, streamlining the integration process for engineers and technicians alike.
For optimal performance and longevity, always refer to the original documentation provided by General Electric, which includes detailed data-sheets, manuals, and technical support resources. These materials are essential for understanding the full potential of the GE DS3800HCVA1G Circuit Board in your specific application.
