Manufacturing Company:General Electric
Model Number:DS3800HPTK
Application Category:Mark IV DS3800
Functionality:Gate driver for the Mark IV Speedtronic series, providing precise control over turbine operations

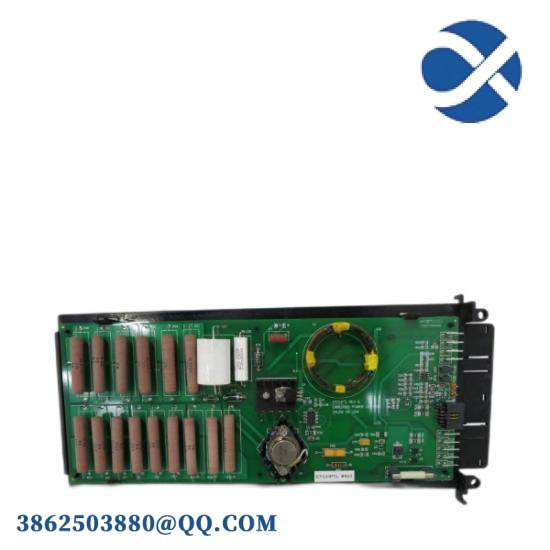

Component Count:Fifteen long grey resistors rated at 18 Ohms ±5%, ten color-coded resistors indicating their capacity, thirteen diodes of various colors, three capacitors of varying sizes, a large glass fuse, and a small red LED
Physical Design:Comprises a thin metal divider with eight contact points, labeled from A through H and then J with triangular symbols between each letter, and equipped with two screw points and two plastic clips for easy installation
Manufacturing Information:Labeled with circuit board number, manufacturer’s logo (GE), and manufacturing location
The GE DS3800HPTK Gate Driver Card is engineered for optimal performance within the industrial control environment, ensuring reliable operation under a wide range of conditions.
This card is equipped with advanced circuitry designed to enhance control accuracy and system reliability, making it an indispensable component in the Mark IV Speedtronic Series.
Crafted with precision, the DS3800HPTK features a robust construction that withstands harsh industrial environments, backed by GE‘s reputation for quality and durability.
Installation is straightforward, thanks to its compact design with two screw points and two plastic clips, allowing for easy integration into existing systems.
With a comprehensive set of specifications tailored to meet the stringent requirements of modern industrial applications, the DS3800HPTK is a trusted choice for engineers seeking dependable and efficient control solutions.
