Series Tag:Mark VIe
Product Type:Printed Circuit Board
Function Type:Communication Module
Dimension:11 x 6 x 6.7 cm
Weight:0.14 kg
Hardware Components:[“Two large, drum-shaped capacitors”,”Multiple long, dark black resistors”,”Three sophisticated fuses labeled FU1, FU4, and FU5″]
Installation Features:[“Factory-drilled and insulated installation holes”,”Eight female-style connection ports”,”Convenient jumpers”]

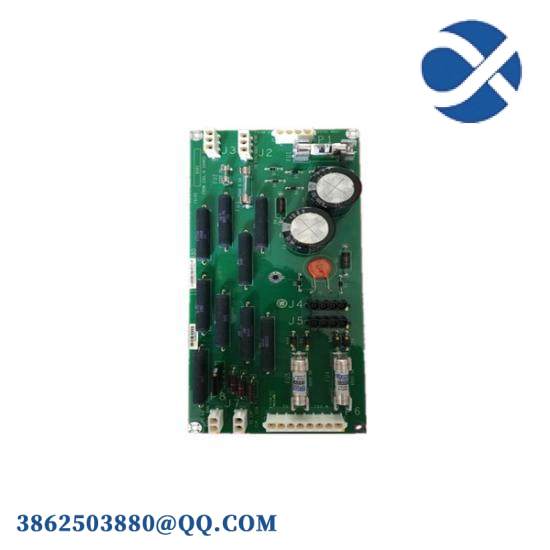

The GE-FANUC IS200WEORG1ACD circuit board is developed by GE Energy, specifically for the Mark VIe Turbine Control System Series, ensuring compatibility and integration with the existing system architecture.
This PCB features a robust design with a combination of capacitors, resistors, and fuses that provide stability and protection against voltage spikes, enhancing system reliability.
Each fuse is labeled with a unique reference designator (FU1, FU4, and FU5), allowing for quick identification and replacement in case of failure, thus minimizing downtime and maintenance costs.
The inclusion of factory-drilled and insulated installation holes ensures safe and secure mounting, facilitating easy assembly and disassembly processes without compromising electrical integrity.
The board supports various industrial standards, including field bus communication protocols, enabling seamless data exchange and control over different system components.
