Dimension:33 cm x 10.2 cm x 4.8 cm
Weight:0.54 kg
Product Type:Thermocouple Terminal Board
Material:High-grade, durable metal and insulating materials
Compatibility:Compatible with GE EX2100 Excitation Control Series
Crafted from high-grade aluminum and stainless steel, the IS200TBTCH1BBB offers robust durability and exceptional thermal conductivity, ensuring reliable operation in harsh industrial environments.
Equipped with a modular design, this circuit board facilitates easy integration and customization, allowing for efficient management of thermocouple inputs and standard signals in your control system.
The inclusion of three significant revisions ensures compatibility with the latest software updates, enhancing system performance and reducing downtime.

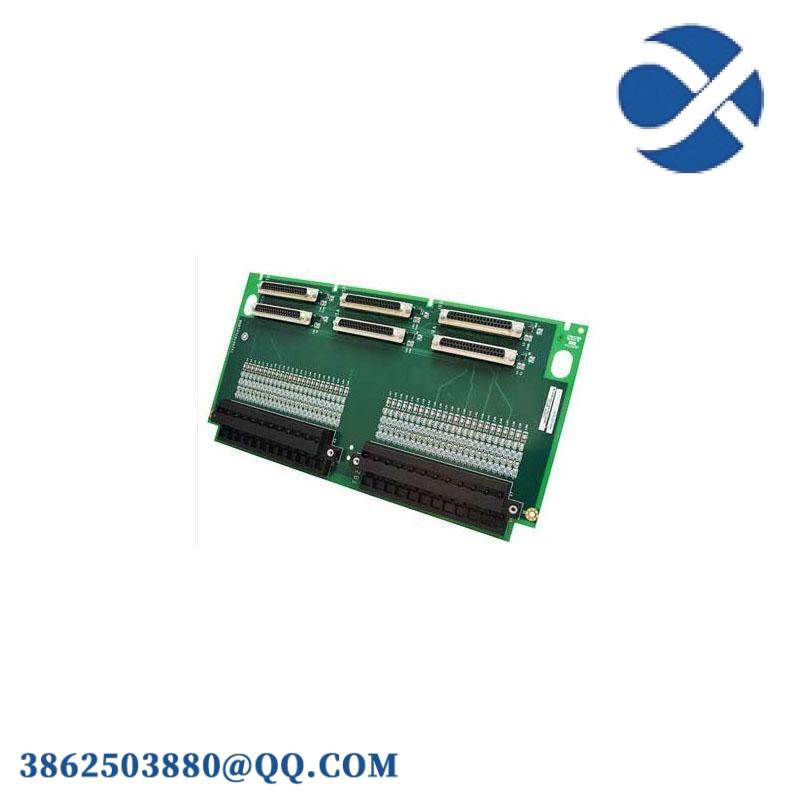

Key features include two silver and black connector ports, which house critical electrical components for secure data transfer and energy management.
Near the center of the board, you’ll find a series of capacitors—some with silver bands and others solid silver—that optimize power distribution and signal integrity.
Surrounding these capacitors are two long lines of small blue resistors, meticulously placed to ensure precise resistance levels for accurate current control.
With dimensions of 33 cm x 10.2 cm x 4.8 cm and weighing just 0.54 kg, the IS200TBTCH1BBB is designed for ease of installation and handling, making it an ideal choice for streamlined industrial setups.
