Manufacturer:General Electric
Series:EX2100
Part Number:IS200TBTCH1CBB
Functional Acronym:TBTC
Functional Description:Thermocouple Terminal Board
PCB Coating:Conformal Coating
Functional Revision:[“1″,”B”]
Artwork Revision:B
Application:Excitation Control Systems
Input Contacts:3
Power Supplies:[“M1″,”M2”]
Coating Type:Chemically applied thin layer
Relay Used:Relay 41

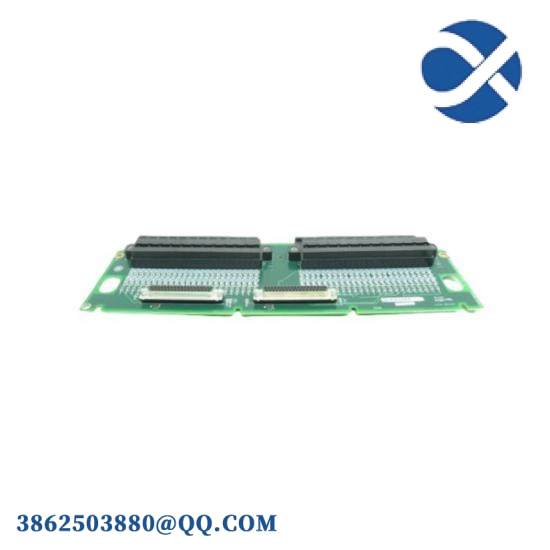

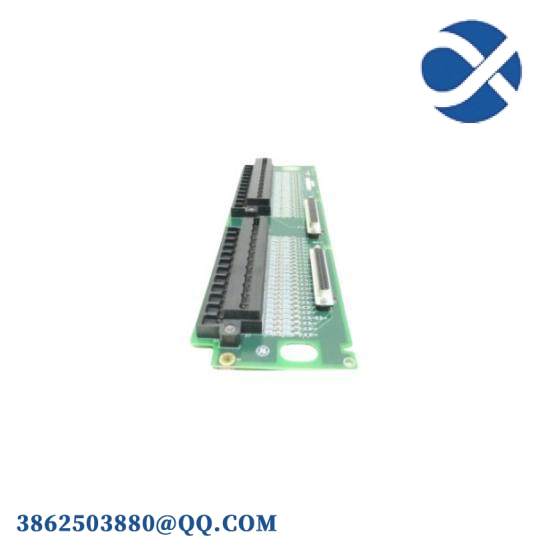

This circuit board is engineered to enhance the performance of industrial control systems, providing precise thermocouple terminal connections essential for various applications. Its modular design allows for easy integration into existing systems, ensuring compatibility and seamless operation.
The IS200TBTCH1CBB features a series of jumpers that offer flexibility in configuration, allowing users to tailor the board to their specific system requirements without compromising on functionality. This customization capability is a key aspect that sets it apart from standard components.
Manufactured by General Electric, known for its reliability and innovation in the field of industrial automation, this circuit board is a testament to the company’s commitment to delivering high-quality products that meet the demands of modern industrial environments.
Designed for durability and efficiency, the IS200TBTCH1CBB is constructed using premium materials, ensuring long-lasting performance and reliability in harsh industrial conditions. Its robust build quality supports continuous operation without degradation over time.
For detailed information regarding dimensions, performance specifications, and other technical details, please refer to the original instruction manual. Our team of experts is available to provide additional guidance and support, ensuring a smooth installation and integration process.
