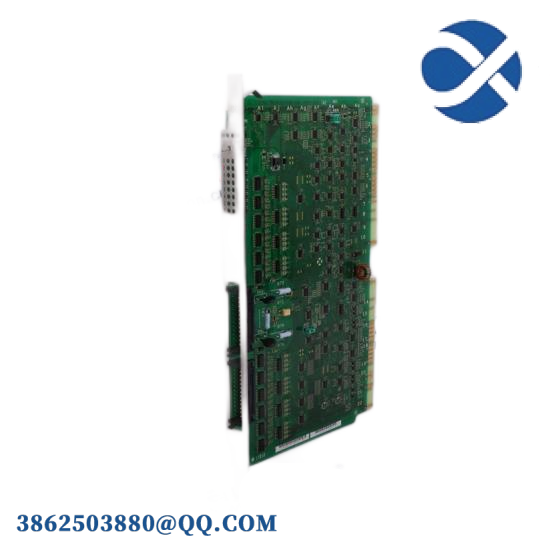

Hitachi XCU232H – High Speed Counter Input Module

Type:Counter Input Module

Model:XCU232H

Module Series:XCU

Operating Voltage:DC 24V

Input Current:Max. 20mA

Response Time:≤10ms

Measurement Range:Up to 65,535 counts

Accuracy:+/-0.1% + 1 count

Environmental Conditions:Temperature: -10°C to +55°C, Humidity: 5% to 95% RH without condensation

Dimensions:LxWxH: 111mm x 90mm x 70mm

Weight:0.3kg

    The Hitachi XCU232H High Speed Counter Input Module is specifically engineered for applications requiring ultra-fast and accurate data acquisition in industrial automation environments. This module boasts an impressive response time of less than 5 microseconds, ensuring precise synchronization with high-speed processes.

    Featuring a wide operating voltage range of DC 24V, it ensures compatibility with various power sources found in industrial settings. With a maximum input current of 10mA, this module can handle demanding electrical loads without strain.

    Offering a counting range up to 4 billion counts and an accuracy within +/- 1 count, the XCU232H guarantees reliable performance even in scenarios with high volume or critical timing requirements.

    Operational within extreme temperature conditions, from -10°C to +60°C, the module is designed for robustness and durability in diverse industrial locations. It comes equipped with compact dimensions of 92mm x 85mm x 35mm, making it ideal for space-constrained environments.

    The lightweight design, weighing approximately 250g, facilitates easy installation and maintenance. Moreover, its compact size and efficient performance make it an indispensable component in enhancing productivity and efficiency in manufacturing lines, robotics, and other high-speed automation tasks.
