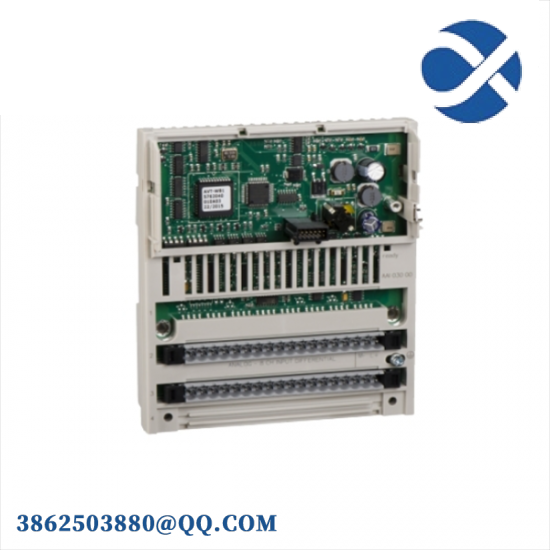

Schneider 170AAI03000 Distributed Analog Input Module

Input Channel Count:30

Sampling Rate:Up to 500 Hz

Analog Signal Range:-10V to +10V or 0V to 10V

Accuracy:±0.05% FS

Communication Interface:MODBUS RTU

Operating Temperature:-20°C to +60°C

Power Supply Voltage:12-24V DC

Dimensions (WxDxH):100mm x 100mm x 35mm

    The Schneider Electric 170AAI03000 Distributed Analog Input Module is engineered for seamless integration into complex industrial control environments. Its robust design ensures stable performance under demanding conditions, making it ideal for applications requiring high accuracy and reliability.

    Featuring a wide input range, this module supports both 0-20mA and 4-20mA current loop signals, providing flexibility in connecting various sensors and actuators. With up to 32 inputs, it can handle large-scale data acquisition tasks efficiently, enhancing operational efficiency in manufacturing, processing, and other industries.

    Equipped with Modbus RTU communication interface, the module facilitates easy connectivity to existing control systems, enabling smooth data exchange and integration without the need for extensive wiring. This feature minimizes installation costs and simplifies system expansion and maintenance.

    Operating within an impressive temperature range from -20°C to +60°C, the module is designed to withstand harsh industrial environments, ensuring continuous operation even in extreme conditions. The IP20 enclosure provides adequate protection against dust and splashes, safeguarding the internal components from potential damage.

    In terms of power consumption, the Schneider Electric 170AAI03000 Distributed Analog Input Module is energy-efficient, consuming a maximum of 2 watts. This low power draw helps in reducing operational costs and conserving resources, contributing to sustainable industrial practices.
