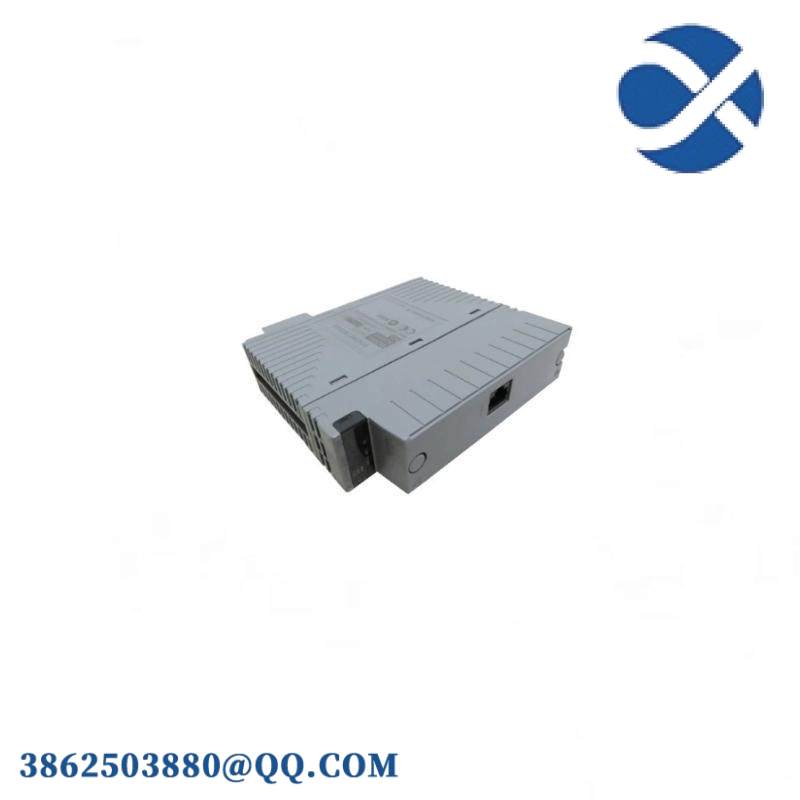

Yokogawa AAI543-H00 S1 Analog Input Module – High Precision, Reliable Industrial Control Solution

Number of Input Channels:16

Isolation:Yes, per channel

Signal Range:4 to 20 mA

Redundant Configuration Response:Standard or Fast

Communication Protocol:HART protocol

Weight:0.4 kg

Dimensions:L x W x H (mm)

:125 x 95 x 35

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Enclosure Rating:IP20

Power Supply Voltage:DC 24 V

    The Yokogawa AAI543-H00 S1 Analog Input Module is engineered to meet the demanding requirements of industrial environments. It features 16 isolated input channels, each capable of measuring signals within the range of 4 to 20 mA, ensuring precise data acquisition.

    In redundant configurations, the module offers a choice between standard or fast switch-over responses, providing flexibility and reliability to suit various operational needs.

    Equipped with the HART communication protocol, this module facilitates seamless integration with a wide range of industrial systems, enhancing communication capabilities and enabling advanced diagnostics.

    Compact yet robust, the AAI543-H00 S1 measures just 125 x 95 x 35 mm, making it easy to integrate into existing control panels without compromising on functionality. It is designed to withstand extreme temperatures, from -20°C to +70°C during operation and -40°C to +85°C during storage.

    The module’s IP20 enclosure rating ensures protection against dust and light splashes, guaranteeing dependable performance even in harsh conditions. Its low power consumption and versatile DC 24 V power supply voltage make it an efficient addition to any industrial control system.
